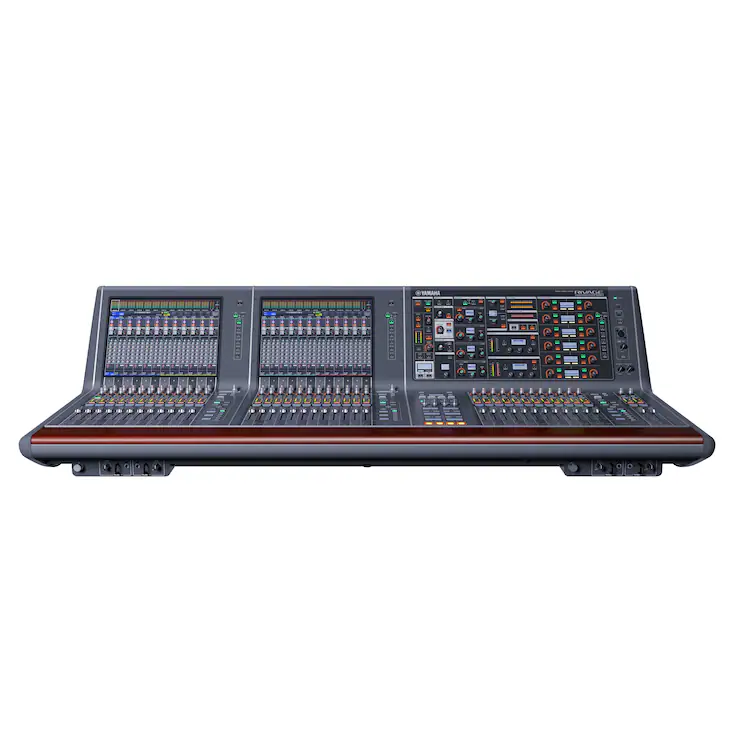

Yamaha RIVAGE CS-R10 Flagship 38‑fader control surface with two touch panels.

YAM-CSR10 The CS-R10 is a flagship control surface in the RIVAGE PM10 system: 38-fader layout (12+12+12+2), dual 15″ touch-panel displays, dual redundant power supplies, MY slots for I/O expansion, and full integration with the system’s DSP and network infrastructure.

• Display: 15" touch panel x 2
• Faders: 38 (12+12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 2
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)
• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Power supply: Dual redundant power supply built-in
• Power consumption: 380W
• Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0" x 16.4" x 33.4")
• Net Weight: 85 kg (187 lbs)
