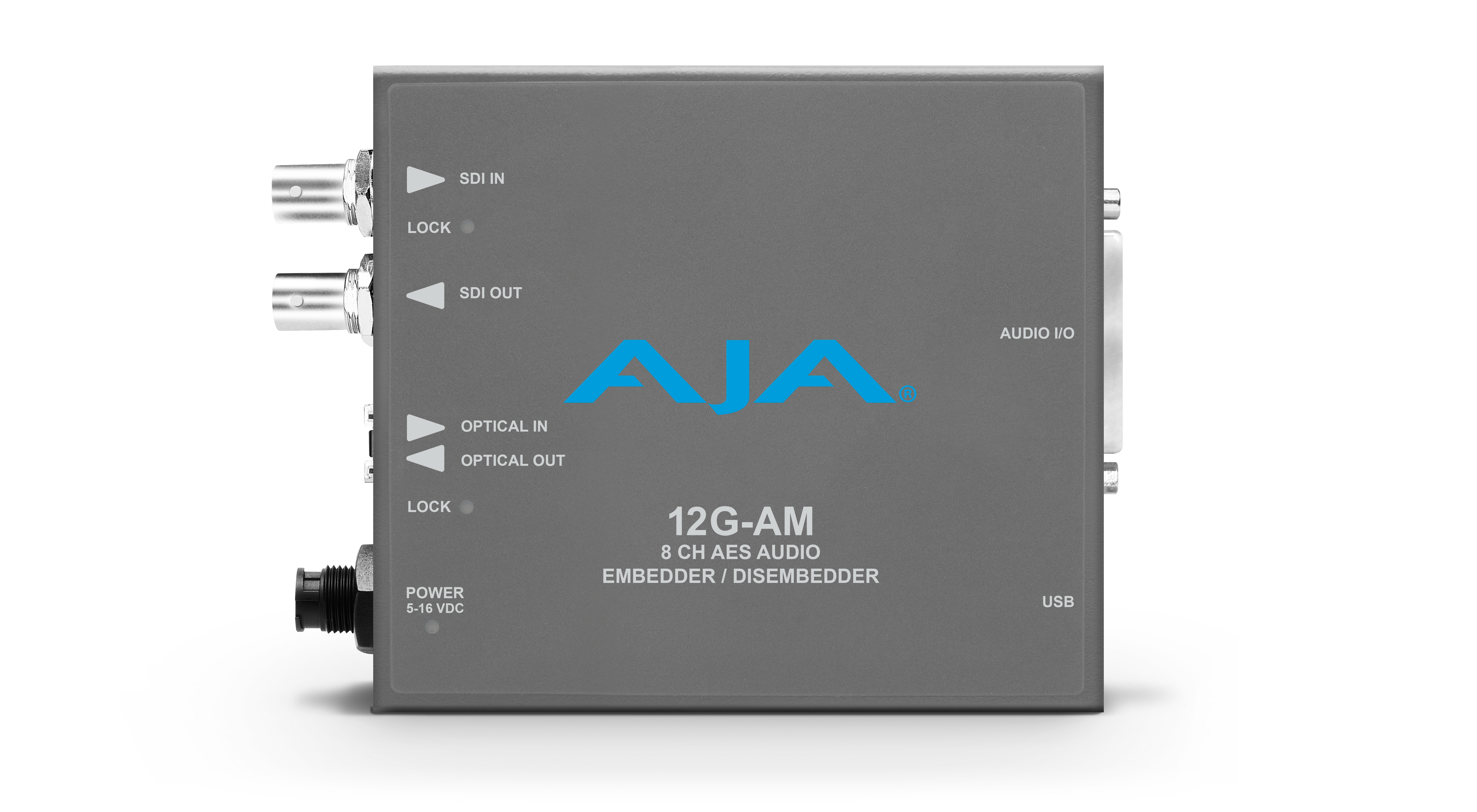

8-Channel 12G-SDI AES audio Embedder/Disembedder with Fiber Options, 8 XLR connectors
Specifications
- (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082Single Link SD/HD/2K/UltraHD/4KSingle Link 3G-SDI Level A or B DL, SMPTE 425
- Single Link SD/HD/2K/UltraHD/4K
- Single Link 3G-SDI Level A or B DL, SMPTE 425
- 12G-SDI 8-Channel AES Embedder/Disembedder
- 12G-SDI Input and Output up to 4K/UltraHD
- 8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
- AES audio Disembedding is always functional with four AES outputs
- AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
- Selectable AES audio levels
- Automatically detects and configures the input video standard
- 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
- Small form factor allows for a wide variety of installation locations
- Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
- USB connectivity via AJA Mini-Config software
- DIP Switch configuration
- 5-16 VDC Power
- Five year warranty
Warranty: 5 Years
