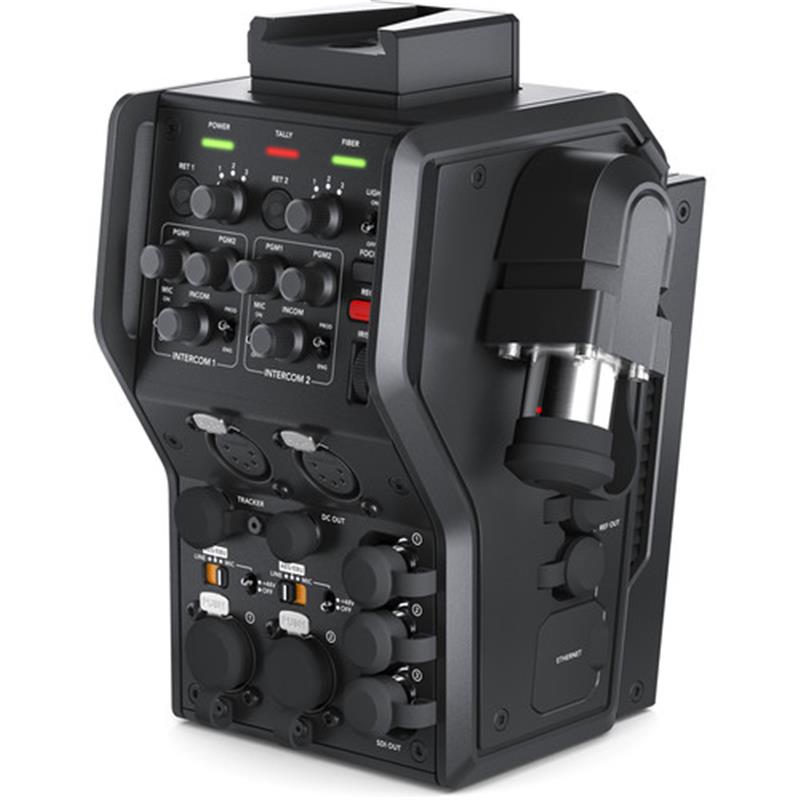

Blackmagic Design Camera Fiber Converter

• Single SMPTE fiber cable for video, audio, talkback, tally, and camera control
• 12G-SDI input/output for 4K video at up to 2160p60
• Supports camera control, tally, and intercom for broadcast workflows
• Dual-channel intercom with dedicated mic and headphone connections
• Bi-directional video for program return, monitoring, and camera control
• Durable metal chassis with professional broadcast connectors
• Power supply over SMPTE fiber for remote camera operation
• Compatible with URSA Broadcast, URSA Mini, and Studio cameras

The Blackmagic Design Camera Fiber Converter allows you to extend the distance between your camera and production switcher using a single SMPTE fiber optic cable, supporting distances of up to 2 km (1.24 miles). This makes it ideal for large venues, sports stadiums, outdoor broadcasts, and other professional live productions where cameras need to be placed far from the control room.

The converter supports 12G-SDI connections, allowing the transmission of 4K video up to 2160p60 over fiber. It also supports lower resolutions such as HD and SD, making it compatible with a wide range of production setups. With bi-directional SDI video, you can send video from the camera to the switcher while simultaneously receiving a program feed back to the camera operator.

The Camera Fiber Converter fully integrates with Blackmagic’s camera control systems, allowing for seamless remote control of camera settings, color correction, and tally light functions from the production switcher. This enables the director or technical crew to manage multiple cameras efficiently, making it an essential tool for multi-camera productions.

The converter provides two-way intercom functionality, allowing communication between the camera operator and the production team. It supports a dual-channel intercom, ensuring clear communication for production and engineering teams. Dedicated XLR inputs and outputs are available for connecting microphones and headphones, ensuring clear, professional-quality audio on both ends.

The Blackmagic Design Camera Fiber Converter is housed in a rugged metal chassis, built to withstand the rigors of live production and broadcast environments. The durable design ensures reliability, even in challenging field conditions such as outdoor sports or concerts, where exposure to the elements is common.

The SMPTE fiber connection can deliver remote power to the camera over long distances, reducing the need for additional power supplies at the camera end. This is particularly useful for outdoor or mobile production setups where access to power might be limited.

The Blackmagic Design Camera Fiber Converter is perfect for broadcast professionals, live event production teams, and sports broadcasters who need a reliable solution for extending camera distances while maintaining high-quality video and audio signals. It’s ideal for stadiums, arenas, large outdoor events, and multi-camera OB (outside broadcast) setups, providing seamless control, tally, talkback, and power to remote cameras over long distances.

Type:

• Camera Fiber Converter

Compatibility:

• Designed for use with URSA Broadcast and URSA Mini cameras
• Enables SMPTE fiber connections for remote camera operation

Video Standards:

• UHD 4K: 2160p60, 2160p59.94, 2160p50
• HD: 1080p60, 1080p59.94, 1080p50

Inputs:

• 1 x 12G-SDI Input (for return program feed from switcher)
• 1 x 3G-SDI Input (for auxiliary return feed)

Outputs:

• 1 x 12G-SDI Camera Output (to the camera, for Ultra HD signals)
• 1 x 3G-SDI Camera Output (for HD signals)
• 1 x 3G-SDI Monitor Output (local HD monitoring)
• 1 x 12G-SDI Return Output (program feed return)

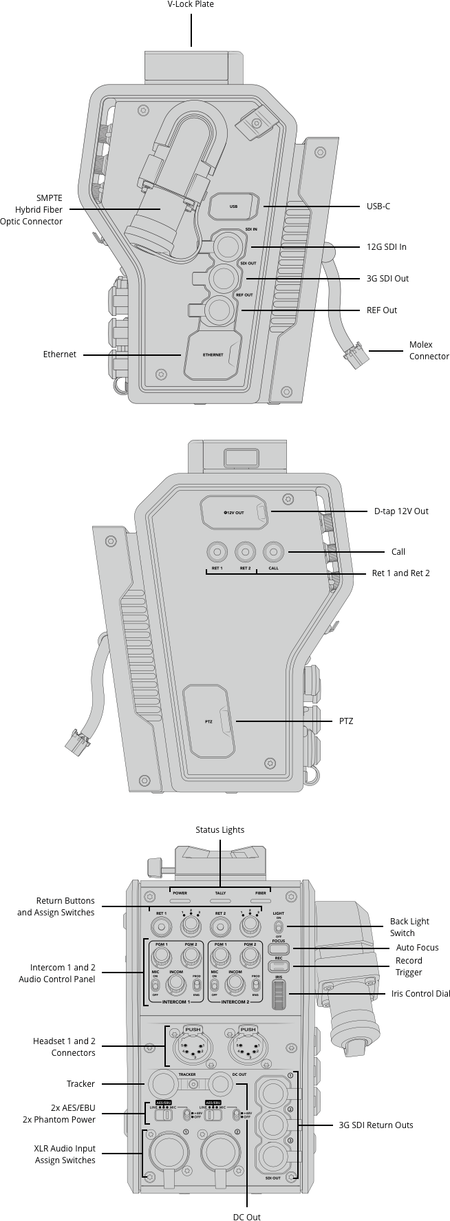

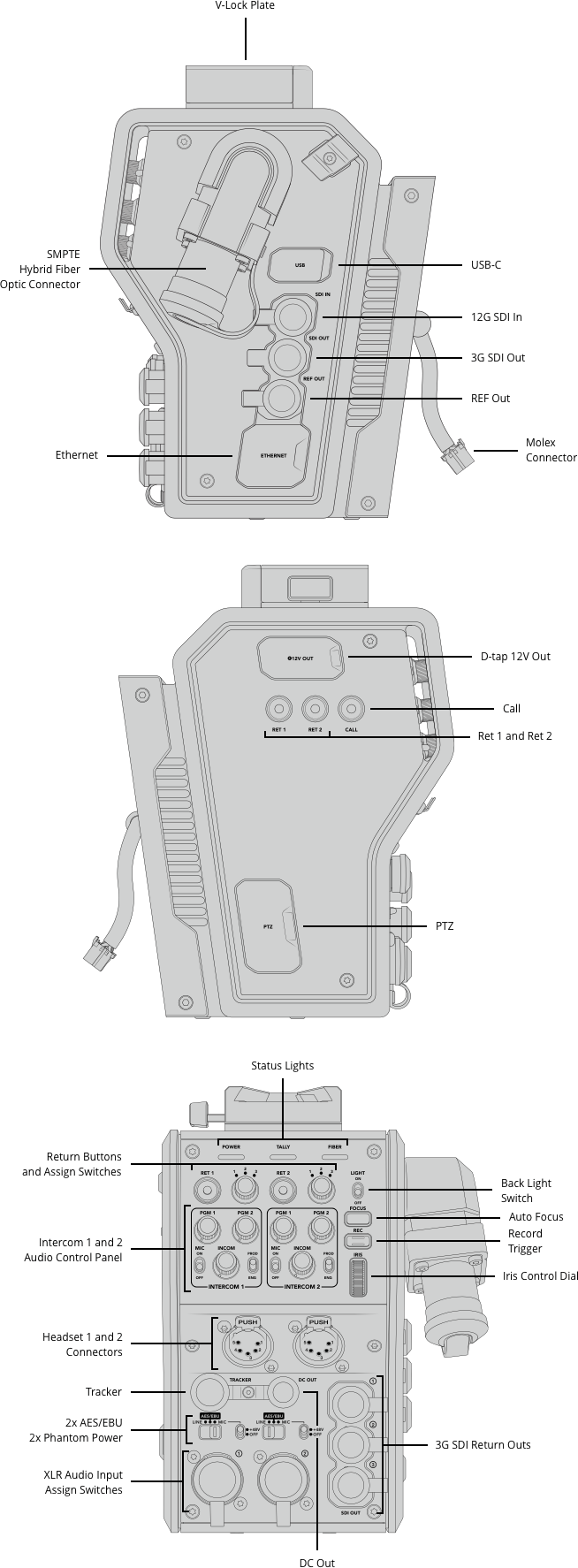

Connections:

• SMPTE hybrid fiber connection (for sending power, video, audio, and control signals over long distances)
• XLR Input for intercom (Headset, 5-pin XLR female)
• XLR Output for intercom (Headset, 5-pin XLR male)
• 2 x XLR Audio Inputs (for external microphone or line-level audio sources)
• 2 x XLR Audio Outputs (for monitoring return audio)
• 1 x Reference Input (BNC)

Audio:

• Embedded audio via SDI for 2 channels of broadcast-quality audio
• 2 x XLR analog audio inputs (for external microphones or line-level devices)
• Talkback system with integrated mic and headset connections

Control:

• Tally and talkback signals transmitted via fiber
• Remote camera control via ATEM switchers (color balance, gain, shutter, etc.)
• Built-in camera control with settings for iris, focus, color correction, tally, and more
• 2-way intercom for communication with camera operator and control room

Power Supply:

• Powered via SMPTE fiber connection from Studio Fiber Converter
• Can also use optional 12V DC power input for local power (XLR 4-pin connector)

Power Consumption:

• 65W typical power draw

Dimensions:

• Height: 6.3 inches (160mm)
• Width: 7.7 inches (196mm)
• Depth: 5.7 inches (146mm)

Weight:

• 5.5 lbs (2.5kg)

Chassis:

• Rugged metal construction designed for field and studio use
• Designed to be mounted directly to the rear of URSA Broadcast or URSA Mini cameras

Features:

• Allows cameras to be positioned up to 2km (1.24 miles) away from the switcher using a single SMPTE hybrid fiber cable
• Provides power, return video, talkback, tally, camera control, and audio over a single cable
• Integrated talkback system for communication between the camera operator and the control room
• Provides 12G-SDI connections for Ultra HD transmission, plus HD-SDI for HD workflows
• Supports remote control of camera settings (focus, iris, gain, color correction, etc.) via Blackmagic ATEM switchers
• Provides program return feed and intercom for remote operators
• Built-in return video and program audio monitoring

Included Accessories:

• SMPTE fiber cable strain relief clamp
• Mounting screws for camera attachment

Applications:

• Broadcast, live production, and remote event filming
• Ideal for large venues, stadiums, and outdoor events requiring long-distance camera positioning
