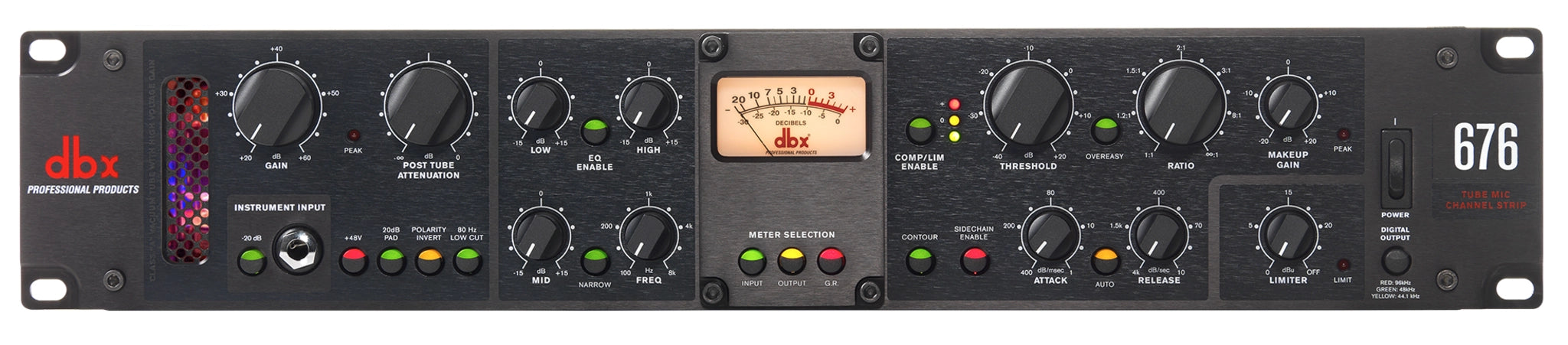

Tube Mic Pre Channel Strip
dbx 676 Specifications
-
Preamplifier: High-voltage Class-A Tube (12AU7A / ECC82) running at 250V DC
-
Inputs:Female XLR (Microphone)
- 1/4" Tip-Sleeve (Front-panel Instrument)
-
Outputs: Male XLR and 1/4" TRS (Servo-balanced/unbalanced)
-
Inserts: 1/4" TRS Preamp Insert and 1/4" TRS Compressor Sidechain Insert
-
Frequency Response:Mic Input: 20 Hz to 50 kHz, +0/-1dB
- Instrument Input: 30 Hz to 70 kHz, +0/-1dB
-
EQ Section: 3-band semi-parametric
- Low: 100 Hz shelving
- High: 10 kHz shelving
- Mid: Sweepable from 100 Hz to 8 kHz with selectable "Narrow" Q
-
Compressor/Limiter:Threshold Range: -40 dBu to +20 dBu
- Ratio: 1:1 to ∞:1
- Knee: Selectable OverEasy™ or Hard Knee
- Limiter: dbx PeakPlus™ (-4 dBu to +22 dBu)
-
Function Controls: +48V Phantom Power, 20dB Pad, Polarity Invert, and 80 Hz Low Cut filter
-
Metering: Vintage-style Analog VU Meter (selectable for Input/Output/Gain Reduction)
-
Dimensions: 3.5”H x 19”W x 8”D (2U Rackmount)
-
Weight: 8.1 lbs (3.7 kg)
