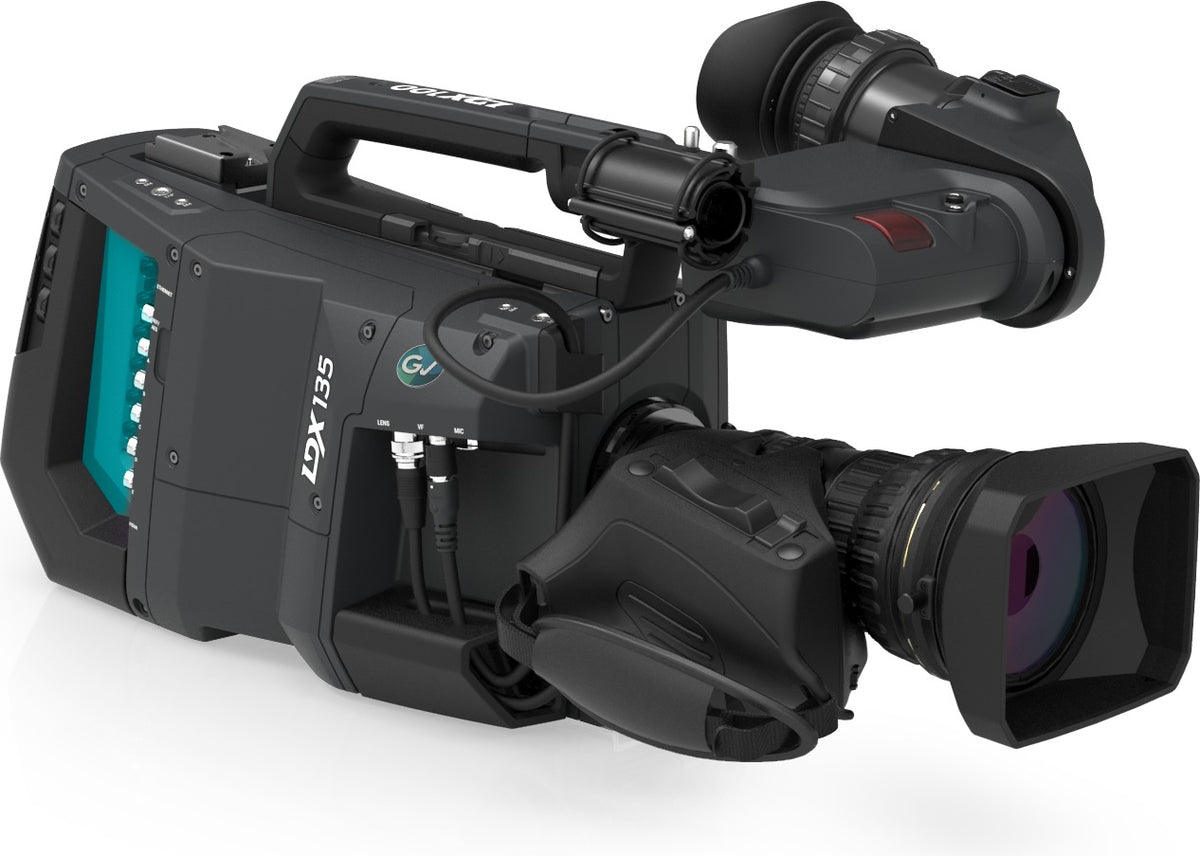

Grass Valley LDX 135 Single-Speed HD/UHD HDR Live Production Camera

The Grass Valley LDX 135 is the single-speed member of the LDX 100 Series, giving live-production crews the same feature set, connectivity and image performance as the LDX 150 at a lower entry price. Three 2/3-inch Xenios CMOS imagers with a global shutter and prism beam splitter deliver high sensitivity and excellent signal-to-noise, native HDR with integrated LUT-based SDR conversion, and SDI or native IP connectivity with optional JPEG XS compression. Ideal for camera positions that do not need high-speed operation and a natural companion to the LDX 150.

• Speed: Single-speed HD/UHD (no high-speed operation)
• Pick-up device: 3x 2/3-inch (2.3") UHD Xenios CMOS imagers with global shutter
• Optical system: F1.4 prism beam splitter
• Lens mount: 2/3" (B4 type) bayonet
• Shutter / smear: No mechanical shutter; no vertical smear
• Sensitivity: F11 @ 2000 lux, 62 dB S/N (2160p50)
• Horizontal resolution: >1,000 TV lines (HD), >2,000 TV lines (4K UHD)
• Gain: -6 dB to +18 dB in 3 dB steps, or continuous master gain
• Processing: 16-bit A/D conversion, 34-bit RGB processing
• Optical filters: Wheel 1: clear, 1/4 ND, 1/16 ND, 1/64 ND, cap. Wheel 2: clear, 4P-star, OLP, 1/2 ND, cap
• HDR: Native support for all HDR standards; integrated LUT-based HDR-to-SDR conversion
• Connectivity: SDI baseband or native IP (SMPTE ST 2110, AMWA NMOS IS-04/05/07/09); optional JPEG XS compression
• Hybrid fiber: SMPTE ST 304 (swiveling)
• Video connectors: BNC A-E (1.5G/3G/12G), micro HDMI monitoring, C2IP and IP trunk RJ-45 (1 Gb/s)
• Audio / intercom: Front mic XLR-3 and 2x rear XLR-3 (switchable +48 V); XLR-5 intercom (Engineering, Production, Program)
• Power: 12-17 V DC XLR-4 input; approx. 100 W typical
• Operating temperature: -20 to +45 C (-4 to 113 F); -20 to +40 C recommended in 6x high-speed
• Weight / dimensions: Approx. 5.5 kg (12.1 lb); 380 x 167 x 253 mm (15.66 x 6.56 x 9.93 in)
• Works with: XCU Xpress UXF base station; LDX 80/90/100 series control panels, lenses and power supplies
