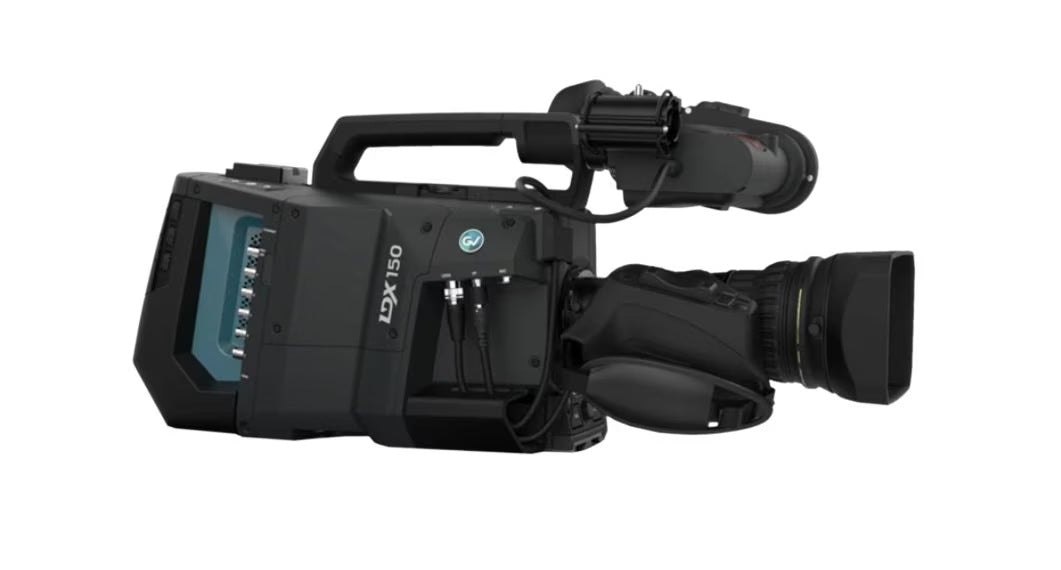

Grass Valley LDX 150 UHD/HD High-Speed HDR Live Production Camera

The Grass Valley LDX 150 is the highest-performing camera in the LDX 100 Series. Three 2/3-inch Xenios CMOS imagers with a prism beam splitter and always-on global shutter deliver high sensitivity, excellent signal-to-noise and improved depth-of-field control. It natively supports all HDR standards with integrated LUT processing for SDR conversion, UHD at 1x to 3x speed and HD at up to 6x speed through software options, and native IP connectivity with optional JPEG XS compression for low-latency, high-quality transport.

• Speed: UHD at 1x-3x speed and HD up to 6x speed (perpetual or daily software options)
• Pick-up device: 3x 2/3-inch (2.3") UHD Xenios CMOS imagers with global shutter
• Optical system: F1.4 prism beam splitter
• Lens mount: 2/3" (B4 type) bayonet
• Shutter / smear: No mechanical shutter; no vertical smear
• Sensitivity: F11 @ 2000 lux, 62 dB S/N (2160p50)
• Horizontal resolution: >1,000 TV lines (HD), >2,000 TV lines (4K UHD)
• Gain: -6 dB to +18 dB in 3 dB steps, or continuous master gain
• Processing: 16-bit A/D conversion, 34-bit RGB processing
• Optical filters: Wheel 1: clear, 1/4 ND, 1/16 ND, 1/64 ND, cap. Wheel 2: clear, 4P-star, OLP, 1/2 ND, cap
• HDR: Native support for all HDR standards; integrated LUT-based HDR-to-SDR conversion
• Connectivity: SDI baseband or native IP (SMPTE ST 2110, AMWA NMOS IS-04/05/07/09); optional JPEG XS compression
• Hybrid fiber: SMPTE ST 304 (swiveling)
• Video connectors: BNC A-E (1.5G/3G/12G), micro HDMI monitoring, C2IP and IP trunk RJ-45 (1 Gb/s)
• Audio / intercom: Front mic XLR-3 and 2x rear XLR-3 (switchable +48 V); XLR-5 intercom (Engineering, Production, Program)
• Power: 12-17 V DC XLR-4 input; approx. 100 W typical
• Operating temperature: -20 to +45 C (-4 to 113 F); -20 to +40 C recommended in 6x high-speed
• Weight / dimensions: Approx. 5.5 kg (12.1 lb); 380 x 167 x 253 mm (15.66 x 6.56 x 9.93 in)
• Works with: XCU Xpress UXF base station; LDX 80/90/100 series control panels, lenses and power supplies
