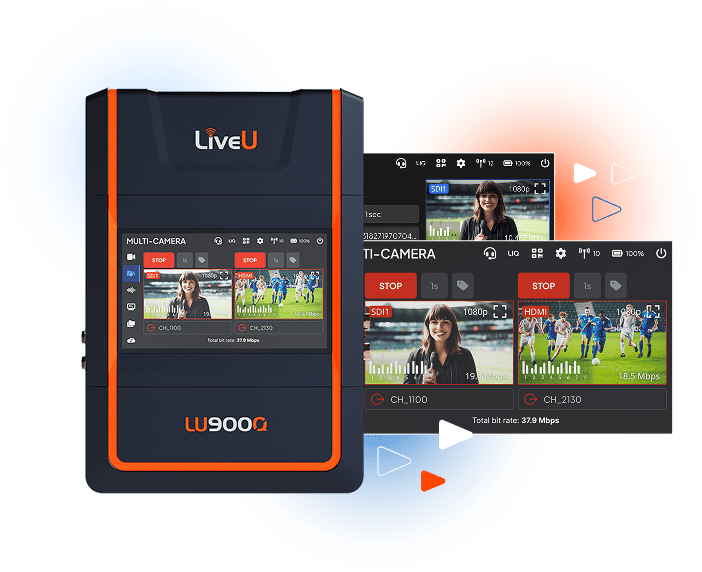

LiveU LU900Q 4K HDR 5G Field Unit with AI-driven IQ and Data License

The LiveU LU900Q is a next-generation live video field unit engineered to redefine broadcast intelligence and performance. Purpose-built for high-end sports, news, and multi-cam productions, it leverages advanced AI-driven LiveU IQ (LIQ™) technology to optimize connectivity in real-time, ensuring rock-solid transmission from even the most crowded or remote locations. HDMI/SDI 100Mbps w/ LiveU Data License.

• Video Resolutions: 4Kp50/60/25/30/24, 1080p50/60/25/30/24, 1080i50/60, 720p50/60.
• Video Encoder: H.264/HEVC, 10-Bit, 4:2:2.
• Audio Channels: Up to 32 audio channels (16 per SDI camera).
• Supported Bitrates: Up to 100 Mbps during live transmission.
• Operational Modes: Live (ultra-low latency down to 0.3s), Live & Store, Store and Forward (FTP transfer), Bonded File Transfer, and DataBridge
• Internal Modems: 6x internal 5G MIMO modems with integrated eSIM technology.
• Simultaneous Bonding: Up to 11 network links total (6x internal 5G, 2x Ethernet ports, Wi-Fi 6, and 2x optional external modems).
• Supported Technologies: 5G/4G/3G, Wi-Fi 6 (802.11 ax/ac/b/g/n), IP Satellite (KA/BGAN), and Starlink.
• Antenna Array: High-efficiency MIMO antenna array for all common wireless frequencies (sub 6GHz 5G & LTE).
• Network Intelligence: Native LiveU IQ™ (LIQ™) for AI-driven real-time network optimization in congested areas.
• Video Inputs: 2x SDI (1x 12G + 1x 3G/HD), 2x HDMI 2.0, IP Input, and USB webcam support.
• Additional Interfaces: Full-size SD Card Slot, HDMI Out, 2x Ethernet ports, Audio jack, USB-C, and 6x external SIM slots
• Setup & Monitor: 5.5” capacitive touchscreen; compatible with LiveU Central (web) and LiveU Control+ (mobile app).
• Collaboration Tools: Dual Video Return (displayed on unit/HDMI/SDI), Dual Intercom (Bluetooth or wired), Tally light, and IP Pipe.
• Battery Life: Up to 7 hours of nonstop transmission with the LiveU ProShell backpack.
• Power Input: 19V (External AC/DC) or 11-17V (Dedicated external battery input).
• Dimensions: 165 mm x 240 mm x 70 mm (6.5" x 9.45" x 2.76").
• Weight: 1.97 kg (approx. 4.3 lbs)
