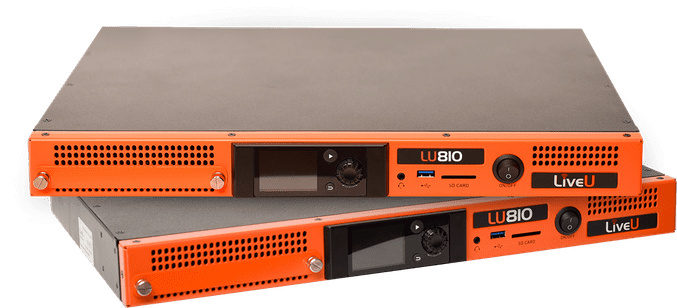

The LU810 is LiveU’s most cost-effective, multi-camera contribution encoder, designed for live sports production.
The LU810-M comes with 6 internal 4G/5G modems, allowing cellular bonding from anywhere.
LU4000
The LU4000 4K/quad HD rack-mount decoder is an essential part of your live video workflow, acting as your in-studio source for remote live feeds coming from any LiveU field unit or from the LiveU Matrix cloud video distribution platform.
The LU4000 offers multiple output options including SDI, NDI, RTMP, MPEG-TS and SRT.
Video Return
The LiveU Video Return server enables field crews to see current program feeds and/or receive teleprompting information during live sessions.
View your live feeds via your LiveU field unit, the LiveU Control App or in our LiveU Video Return Portal.
Audio Interface
The TASCAM US-16x08 audio interface captures 8 XLR inputs with clear sound quality and advanced features to manage large-scale REMI Productions.
IP-Pipe
LiveU IP Pipe lets you gain remote control over a wide variety of network-based equipment, including robotic and PTZ cameras, Camera Control Units (CCUs), and IP-based intercom.
With a one-time set-up, the solution works seamlessly with any LiveU HEVC unit
Tally Light
LiveU Tally Light enables field reporters and camera operators to know instantly when they’re live on air.
Tally Light can be configured and controlled via LiveU Central, the unified cloud-based management platform for LiveU’s field and studio units.
Audio Connect
LiveU Audio Connect offers high-quality and reliable cloud-based audio solutions, enabling commentators and producers in the station to communicate easily with camera operators and talent in the field.
*Offer available in US only. LU810-M includes a 12-month data plan (100GB/month) and 3 external antenna modules.
Video Return server comes with 12-month PRO Plus license.
Camera not included. Speak with an EAR Specialist for your specific use and configuration.
The bundle’s LU810-M comes with a 12-month data plan (100 GB/month) and external antennas included.
LU810-M
1U rackmount HEVC encoder/server
Connectivity & Bonding:
6 internal 4G/5G modems (cellular bonding)
2× Ethernet ports (LAN, optional satellite)
Wi-Fi (2.4/5 GHz)
External antenna connectors included in bundle
Video Input & Encoding:
1× 12G-SDI input + 3× 3G/HD/SD-SDI inputs
Supports up to 4 cameras (frame-synced)
HEVC (H.265) and H.264 encoding
Resolutions: up to 4Kp50/60/25/30/24, 1080p50/60, 1080i, 720p50/60
Audio:
AAC-HE/LC audio encoding, up to 16 audio channels
LU4000
Decoder Capabilities:
Supports a single 4K (12G-SDI) feed or multiple 1080 HD feeds
Up to 4 independent full HD decodes from different sources (4× 3G/HD/SD-SDI)
Supports multi-camera synced feeds (e.g., from LU800)
Output Formats / Protocols:
SDI (various standards)
NDI (IP video)
RTMP, SRT, MPEG-TS streaming outputs
Management & Workflow:
Cloud-based monitoring and control via LiveU Central
LiveU Matrix enabled for IP-based distribution to multiple endpoints
Transport & Reliability:
Powered by LiveU Reliable Transport (LRT™) for optimized delivery to SDI/IP destinations
