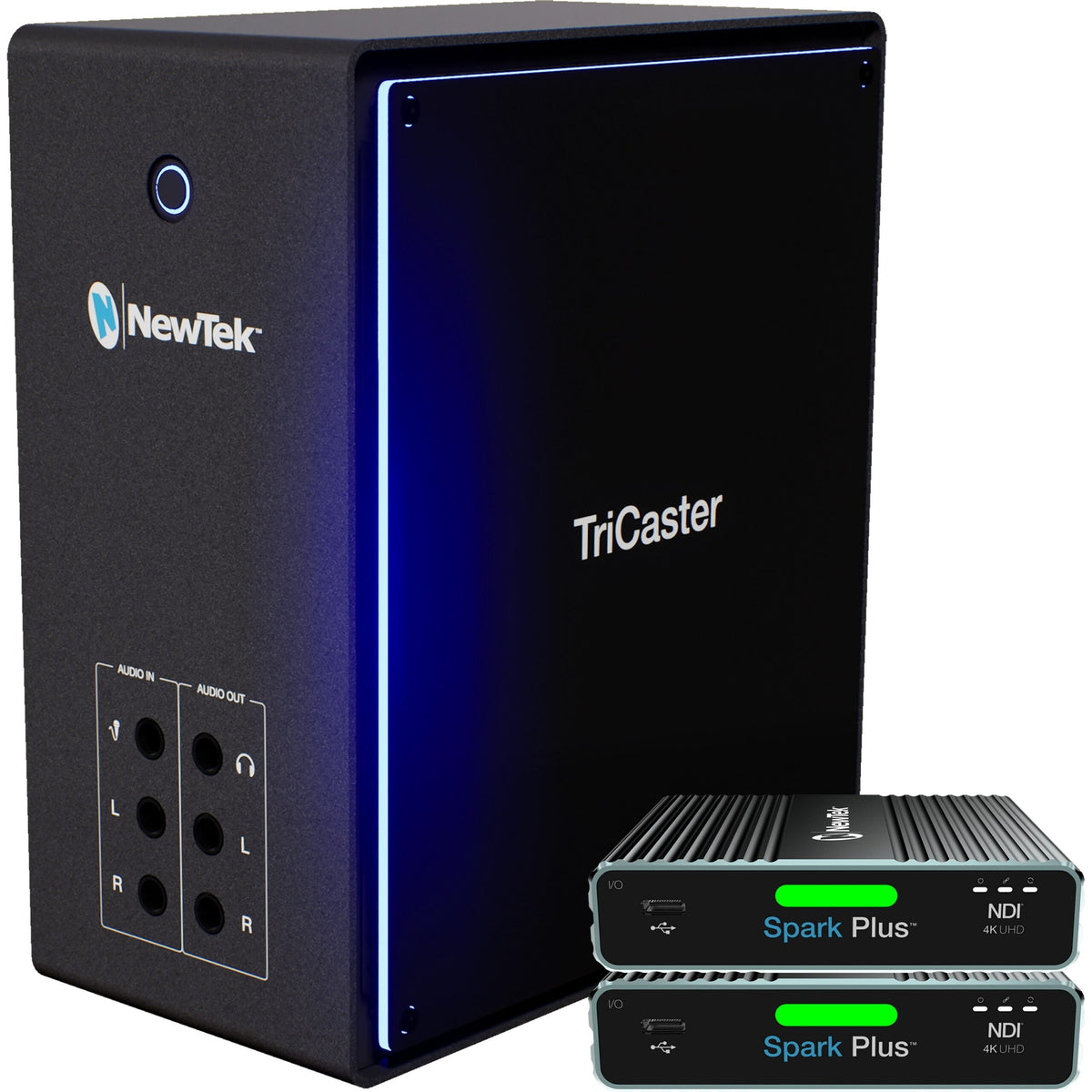

Reconditioned Vizrt TriCaster TC Mini 4K Dealer Demo Bundle with 2 Spark Plus

The TriCaster Mini 4K is a compact live production system with a maximum session resolution of 2160p/60. It provides 8 network video inputs (IP, HDMI through the included Spark I/O 4K converters, and USB), 4 M/E buses with video re-entry, 2 downstream keyer channels, 4 video mix outputs plus 1 UHD video mix output, 2 streaming outputs, and control of up to 8 PTZ cameras. This demo bundle includes the TriCaster Mini control surface, two Spark Plus I/O 4K converters and the NewTek custom travel case. Comes with a 30 day warranty and free phone technical support.

• Maximum session resolution: 2160p/60
• Network video inputs: 8 (IP, HDMI via included Viz Spark I/O 4K, USB)
• Digital video inputs: 4 HDMI
• Video mix outputs: 4 video mix outputs, 1 UHD video mix output (NDI)
• Streaming outputs: 2
• Monitor outputs: 4 (Mini DisplayPort); 1 supported 4K display
• M/E buses: 4 M/E buses, 1 M/E channel per bus with support for up to 2 sources, 2 key layers per bus; M/E video re-entry
• DSK channels: 2
• Media: 2 DDR, 2 GFX, 1 sound, 10 animation buffers, 5 graphic buffers
• Keyers: 8 input keyers, 2 media player keyers, 4 M/E keyers, 15 buffer keyers
• PTZ camera support: Up to 8 via serial and network protocols, including RS232 and RS422 (requires USB to serial adapter, sold separately) and IP, with integrated controls and preset system
• Recording: Channels via NDI inputs or mix outputs; records and retains alpha channel data; 4 QuickTime archival video recorders
• Local audio input: 2 HDMI inputs; 1 x 1/4 in balanced mic, 2 x 1/4 in balanced line
• Local audio output: 2 HDMI outputs; 2 x 1/4 in balanced line, 1 x 1/4 in stereo headphone jack
• Network audio: Native NDI audio input and output; embedded audio on NDI signals; integrated Dante support (requires Dante Virtual Soundcard license, sold separately)
• Processing: Floating point YCbCr +A 4:4:4:4 video; floating point 96 kHz audio
• Latency: Processing latency about 1.0 to 1.5 frames; practical throughput latency 4 frames
• Other: NDI genlock, DataLink, tally via NDI, standard MIDI support, 2 x 1 Gigabit NIC
• Control surfaces supported: TriCaster Mini and TriCaster Flex
• System physical: 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm), 8.4 lb (3.8 kg)

• Video I/O: 1 HDMI
• Audio input: 3.5 mm line level (48 kHz); embedded HDMI
• Encoding: NDI encoding only
• Network: 1 RJ-45 Gigabit Ethernet; web-based user interface
• Power: External power via USB Type-C
• Resolutions: 2160p: 60, 59.94, 30, 29.97, 25; 1080p: 60, 59.94, 50, 30, 29.97, 25; 720p: 60, 59.94, 50, 29.97, 25
• Physical: 4.72 x 3.54 x 0.87 in (120 x 90 x 22 mm), 0.53 lb (0.24 kg) each

• TriCaster Mini 4K
• TriCaster Mini control surface (TC Mini CS)
• 2 x Spark Plus I/O 4K converter
• NewTek custom travel case

Per the Vizrt guide, the standard TriCaster Mini package also includes A/C power cabling, mouse and keyboard, and four Mini DisplayPort adapters. Bundle contents as listed by EAR; guide information obtained October 28, 2026, subject to change.

Source: Vizrt TriCaster Mini User Guide (Version 8-5, dated July 1, 2026), Appendix A technical specifications, from the Vizrt downloads site. Specifications obtained October 28, 2026. Specifications are subject to change.
