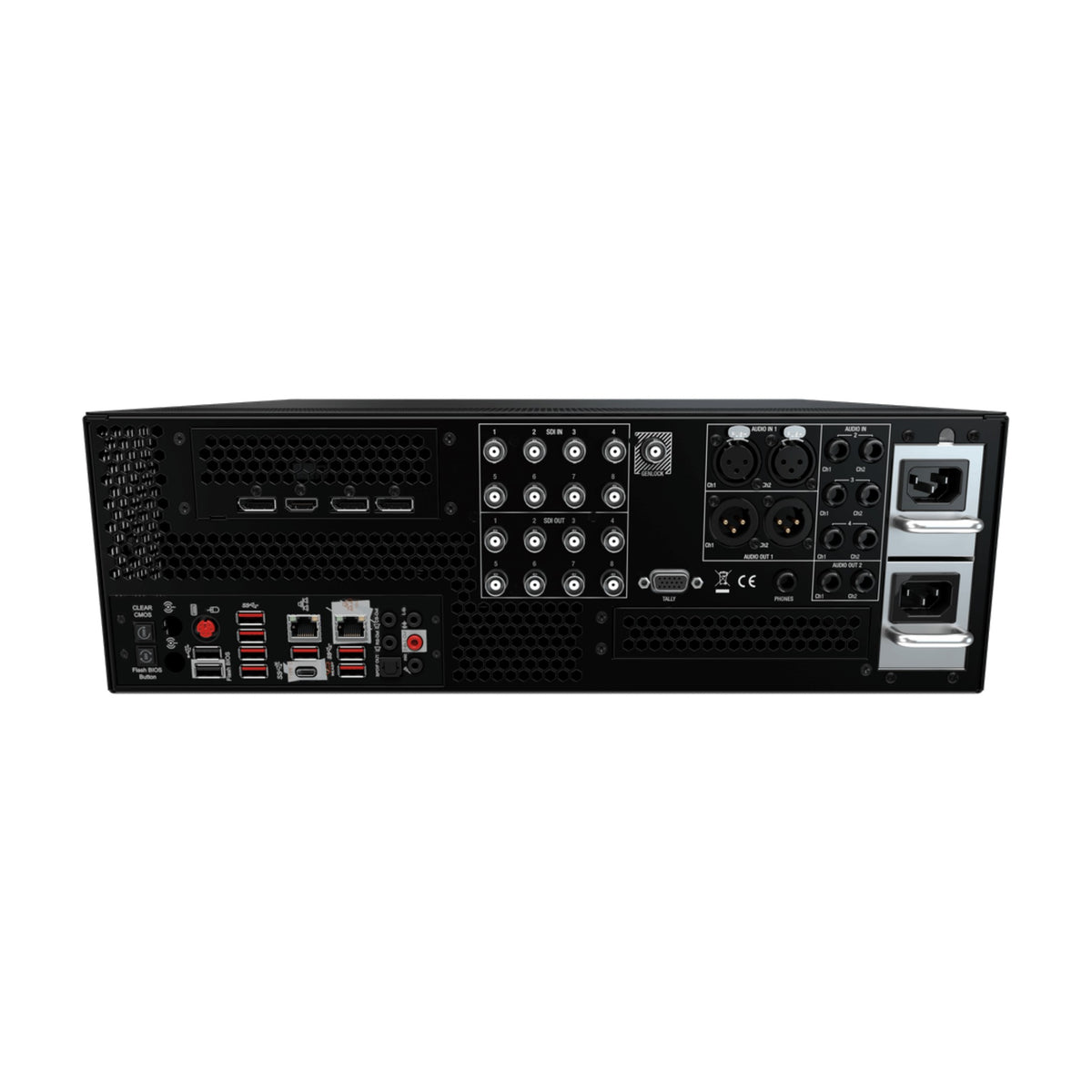

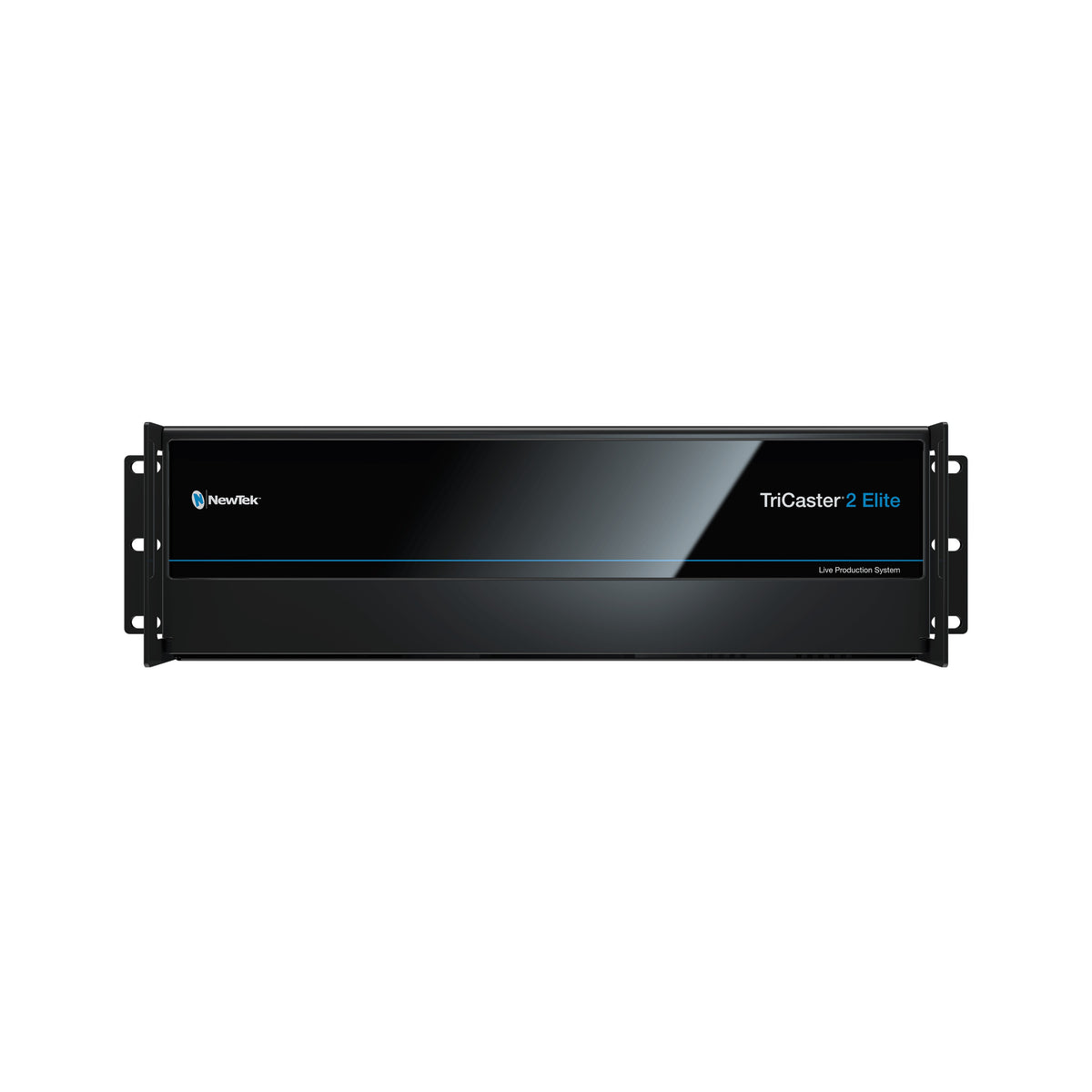

Used NewTek / Vizrt TriCaster TC2 Elite live production system in a 3RU rack chassis, supplied as the TriCaster unit only. A control surface is not included. Photos shown are factory stock images.
- Inputs: 8 SDI, 32 total (including NDI)
- Outputs: 8 SDI, 8 total; 2 x 4K via SDI quad-link
- Maximum session resolution: 4K/p60
- M/E buses: 8 M/E buses; 4 M/E background layers
- DSK channels: 4
- Internal media: 4 DDRs, 15 buffers
- Streaming outputs: 3
- Monitor outputs: 4; supports 2 4K displays
- NDI genlock: Yes
- Audio in: 8 SDI channels; XLR line balanced, 1 stereo pair; 1/4 in line balanced, 3 stereo pairs
- Audio out: 8 SDI channels; XLR balanced, 1 stereo pair; 1/4 in balanced, 1 stereo pair; 1/4 in stereo headphone output
- AI audio: Neural Voice Isolation
- Tally output: DE-15 and NDI
- Network: 1 x 1 Gigabit, 1 x 10 GbE
- Control panels supported: TriCaster Flex, Flex Dual, VMC4S, VMC2S
- Dimensions: 19.0 x 5.25 x 21.12 in (48.3 x 13.34 x 53.65 cm) with rack ears
Specifications from the Vizrt TriCaster User Guide (Version 8-5, August 2026), Appendix A, vizrt.com. Obtained October 28, 2026. Specifications are subject to change.
