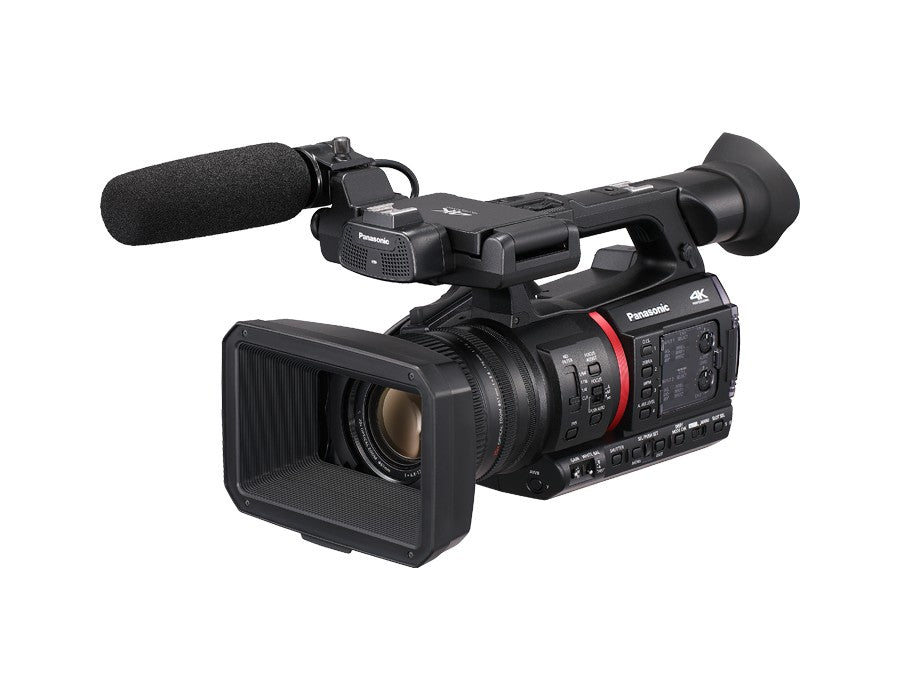

Panasonic AG-CX350PJ is the North American model of the AG-CX350 handheld 4K camcorder for news, events and streaming. A 1.0-type 15M MOS sensor and 24.5 mm wide 20x zoom deliver 10-bit 4K/60p HEVC with V-Log and HLG, plus P2 MXF recording, 3G-SDI and 4K HDMI outputs, NDI HX, and RTMP and SRT live streaming over its gigabit LAN port.
Configuration: AG-CX350PJ
Region: North American model
Optional accessories: AG-VBR series battery packs (per Panasonic North America configuration listing)
Camera: AG-CX350
Type: Handheld 4K memory card camera recorder (CX Series)
Sensor: 1.0-type MOS, approx. 15.03 million effective pixels; UHD, FHD, HD and SD with no image cropping
Lens: Integrated optical image stabilizer lens, 20x motorized optical zoom, F2.8 to F4.5, f=8.8 mm to 176 mm (35 mm equivalent: 24.5 mm to 490 mm); 67 mm filter diameter; hood with lens cover
Zoom: i.Zoom 24x (UHD), 32x (FHD); digital zoom 2x, 5x, 10x
Optical filters: ND: Clear, 1/4, 1/16, 1/64; IR filter with ON/OFF control
Focus: Intelligent AF with face detection/tracking AE and AF; manual three rings (zoom, focus, iris); minimum object distance approx. 10 cm (wide), 1.0 m (tele)
Image stabilization: 5-axis hybrid image stabilizer (optical plus electronic), all modes except Super Slow and VFR
Sensitivity: F12 at 2000 lx (59.94 Hz), F13 at 2000 lx (50 Hz), High Sensitivity mode
Horizontal resolution: 2000 TV lines or higher (UHD, center); 1000 TV lines or higher (FHD, center)
Gain: -3 dB to 18 dB (1 dB steps), Super Gain 24/30/36 dB; ISO mode 400 to 12800
HDR and gamma: HLG (Hybrid Log Gamma) and V-Log (13.5 stops); nine gamma modes (HD, SD, FILMLIKE 1/2/3, FILM-REC, VIDEO-REC, HLG, V-Log)
Recording media: 2x microP2/SDXC UHS-II card slots (SDHC/SDXC, UHS Speed Class 3, Video Speed Class V90; microP2 cards are discontinued); relay, simultaneous and background recording
Recording formats: MOV (HEVC, H.265 Main10): UHD 59.94p/50p 4:2:0 10-bit; MOV (AVC): 4:2:2 10-bit and 4:2:0 8-bit; AVCHD; P2 MXF (AVC-Intra422, AVC-Intra200/100/50, AVC-LongG) with simultaneous AVC-Proxy; 3840x2160, 1920x1080, 1280x720 and SD 720x480/576
Variable frame rate: UHD 1 to 60 fps (MOV); FHD Super Slow 120 fps (100 fps at 50 Hz); 10-bit, no image cropping (MOV only)
Audio: 4-channel 24-bit LPCM recording (MOV/P2); 2x XLR 3-pin inputs (LINE/MIC/MIC plus 48 V); built-in stereo microphone
Video outputs: 3G-SDI x1 (BNC; HD and SD, 4:2:2 10-bit, 1080 up to 59.94p; SDI REC remote); HDMI x1 Type A (4:2:2 10-bit, 3840x2160 up to 59.94p); composite 3.5 mm mini jack
Timecode: TC IN/OUT (BNC, switchable)
IP and streaming: LAN RJ-45 (1000BASE-T/100BASE-TX/10BASE-T) with NDI HX (listed by Panasonic as NDI HX1; an upgrade may be required depending on time of purchase; recording, streaming and 4K output are not available in NDI mode); H.264 live streaming up to UHD 60 fps, unicast and multicast, RTSP/RTP/RTMP/RTMPS/SRT
Camera control: IP control from AW-RP150GJ remote camera controller and AK-HRP1010GJ/AK-HRP1015GJ/AK-HRP250GJ remote operation panels (not all control items supported); CX ROP tablet/smartphone app via optional AJ-WM50/AJ-WM50G wireless module; 2.5 mm remote jack
USB: USB 2.0 host Type-A (wireless module); USB 3.1 Gen1 Type-C device (mass storage)
Monitor and viewfinder: 3.2-type touch-panel LCD, approx. 1.62 million dots; 0.39-type OLED EVF, approx. 2.36 million dots
Power: DC 7.28 V (battery), DC 12 V (AC adaptor, EIAJ Type 4); 11.5 W (1080i 422ALL-I 100M recording, LCD on, no external devices), 17 W maximum
Dimensions (W x H x D): 180 x 173 x 311 mm (7-1/8 x 6-13/16 x 12-1/4 in), excluding protrusions and eye cup
Weight: Body approx. 1.9 kg (4.19 lb); shooting approx. 2.3 kg (5.07 lb) with lens hood, battery and microphone holder
Operating environment: 0 to 40 °C (32 to 104 °F), 10% to 80% humidity (no condensation)
AG-CX350 camcorder, battery (AG-VBR59), battery charger (AG-BRD50), AC adaptor, AC cable, microphone holder kit, shoulder strap, eye cup, lens hood (attached), grip belt (attached), operating instructions
