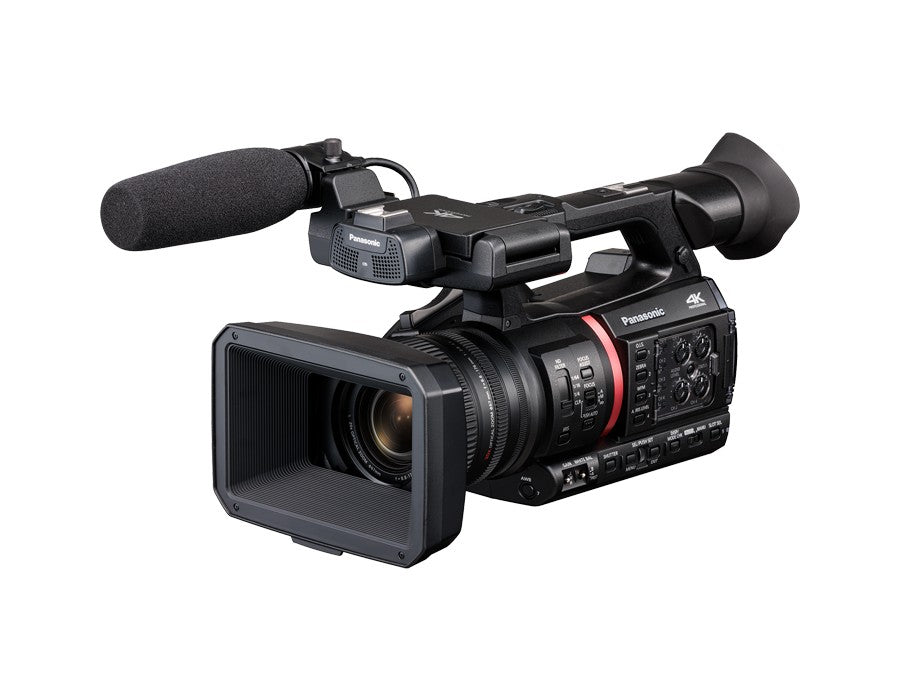

Panasonic AG-CX370PJ is the North American model of the AG-CX370 handheld 4K camcorder for broadcast, event and live-streaming crews. It pairs a 1.0-type 15M MOS sensor and 24.5 mm wide 20x zoom with 10-bit 4K/60p HEVC, V-Log and HLG, P2 MXF, 12G-SDI and HDMI 4K output, GENLOCK input, four-channel audio and built-in NDI HX2 plus SRT streaming.
Configuration: AG-CX370PJ
Region: North American model
Camera: AG-CX370
Type: Handheld 4K memory card camera recorder (CX Series)
Sensor: 1.0-type MOS, approx. 15.03 million effective pixels; UHD, FHD and HD with no image cropping
Lens: Integrated optical image stabilizer lens, 20x motorized optical zoom, F2.8 to F4.5, f=8.8 mm to 176 mm (35 mm equivalent: 24.5 mm to 490 mm); 67 mm filter diameter; hood with lens cover
Zoom: i.Zoom 24x (UHD), 32x (FHD); digital zoom 2x, 5x, 10x
Optical filters: ND: Clear, 1/4, 1/16, 1/64; IR filter with ON/OFF control
Focus: Intelligent AF with face detection/tracking AE and AF; manual three rings (zoom, focus, iris); minimum object distance approx. 10 cm (wide), 1.0 m (tele)
Image stabilization: 5-axis hybrid image stabilizer (optical plus electronic), all modes except Super Slow and VFR
Sensitivity: F12 at 2000 lx (59.94 Hz), F13 at 2000 lx (50 Hz), High Sensitivity mode
Horizontal resolution: 2000 TV lines or higher (UHD, center); 1000 TV lines or higher (FHD, center)
Gain: -3 dB to 18 dB (1 dB steps), Super Gain 24/30/36 dB; ISO mode 400 to 12800
HDR and gamma: HLG (Hybrid Log Gamma) and V-Log (13.5 stops); nine gamma modes (HD, SD, FILMLIKE 1/2/3, FILM-REC, VIDEO-REC, HLG, V-Log); V-Log or V-709 (HDR or SDR in HLG) selectable per SDI, HDMI and LCD output
Recording media: 2x SDXC UHS-II card slots (SDHC/SDXC, UHS Speed Class 3, Video Speed Class V90); relay, simultaneous and background recording; pre-rec, interval rec, time stamp
Recording formats: MOV (HEVC): UHD 59.94p/50p 4:2:0 10-bit up to 200 Mbps; MOV (AVC): UHD up to 29.97p 4:2:2 10-bit 422ALL-I 400 Mbps, FHD 59.94p 4:2:2 10-bit 422ALL-I 200 Mbps; AVCHD; P2 MXF (AVC-Intra422, AVC-Intra200/100/50, AVC-LongG) with simultaneous AVC-Proxy
Variable frame rate: UHD 1 to 60 fps (MOV); FHD Super Slow 120 fps (100 fps at 50 Hz); 10-bit, no image cropping
Audio: 4-channel 24-bit LPCM recording; 2x XLR 3-pin inputs (LINE/MIC/MIC plus 48 V), plus 3.5 mm stereo mini-jack input (plug-in power), each channel with its own volume control; built-in stereo microphone
Video outputs: 12G-SDI x1 (BNC; 4K 12G/6G, HD 3G/1.5G; 4:2:2 10-bit, 3840x2160 up to 59.94p; SDI REC remote); HDMI x1 Type A (4:2:2 10-bit, 3840x2160 up to 59.94p); composite 3.5 mm mini jack. SDI and HDMI output 4K simultaneously
Sync and timecode: GENLOCK IN (BNC, 1.0 V p-p, 75 ohm); TC IN/OUT (BNC, switchable)
IP and streaming: LAN RJ-45 (1000BASE-T/100BASE-TX/10BASE-T) with NDI HX2 (recording, streaming and 4K output are not available in NDI HX2 mode); H.264 live streaming up to UHD 60 fps, unicast and multicast, RTSP/RTP/RTMP/RTMPS/SRT; FTP clip transfer (firmware Ver. 1.24)
Camera control: IP control from AW-RP150GJ remote camera controller and AK-HRP1010GJ/AK-HRP1015GJ remote operation panels (AK-HRP250GJ also listed; not all control items supported); CX ROP tablet/smartphone app via optional AJ-WM50/AJ-WM50G wireless module; 2.5 mm remote jack for third-party zoom/focus controllers; TSL tally
USB: USB 2.0 host Type-A (wireless module); USB 3.1 Gen1 Type-C device (mass storage)
Monitor and viewfinder: 3.2-type touch-panel LCD, approx. 1.62 million dots; 0.39-type OLED EVF, approx. 2.36 million dots; simultaneous display
Power: DC 7.28 V (battery), DC 12 V (AC adaptor, EIAJ Type 4); 17 W (1080i 422ALL-I 100M recording, LCD on, no external devices), 26 W maximum
Dimensions (W x H x D): 180 x 173 x 311 mm (7-1/8 x 6-13/16 x 12-1/4 in), excluding protrusions and eye cup
Weight: Body approx. 1.9 kg (4.19 lb); shooting approx. 2.3 kg (5.07 lb) with lens hood, battery and microphone holder
Operating environment: 0 to 40 °C (32 to 104 °F), 10% to 80% humidity (no condensation)
AG-CX370 camcorder, battery (AG-VBR59), battery charger (AG-BRD50), AC adaptor, AC cable, microphone holder kit, shoulder strap, eye cup, lens hood (attached), grip belt (attached), operating instructions
