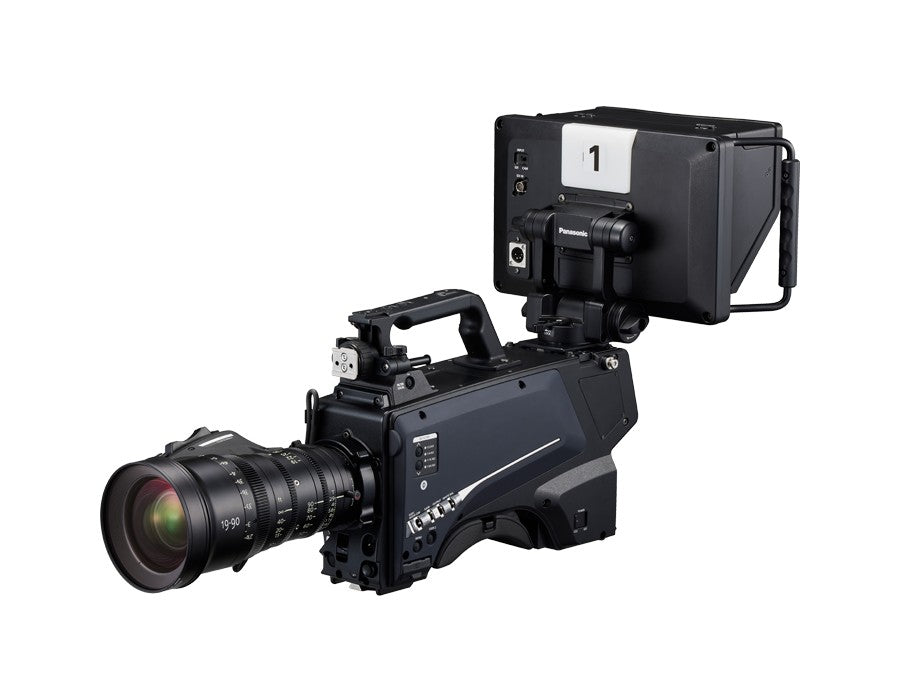

Panasonic AK-PLV100GSJ is a 4K PL-mount studio camera for live cinematic video with shallow depth of field. A 5.7K Super 35 mm sensor, Dual Native ISO 800/2500 and V-Log with 14 stops pair with full studio operability. It outputs 12G-SDI and SMPTE ST 2110 from the camera head without a CCU, and works with AK-UCU700 and AK-HCU250 CCUs, AK-HVF100 and AK-HVF75 viewfinders and AK-HRP panels.
Camera: AK-PLV100GSJ
Image sensor: 5.7K Super 35 mm sensor (24.60 x 12.97 mm), 17.25 million pixels; downsampled for UHD, HD and 720p
Lens mount: 35 mm PL mount
Optical filter: Built-in motorized ND: Clear, 1/4, 1/16, 1/64 (remote switchable)
Dual Native ISO: ISO 800 / 2500 (latest firmware)
Sensitivity: F11 (59.94 Hz) / F12 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
Gamma and HDR: V-Log / V-Gamut with 14-stop dynamic range; FILM-REC gamma with six curves (HD, FILMLIKE1-3, FILM-REC, VIDEO-REC); HDR shooting supported
Horizontal resolution: 4K: 2000 TV lines or above (center); HD: 1000 TV lines or above (center)
Horizontal modulation: 50% or above (27.5 MHz)
Gain: 0 to 36 dB in 3 dB steps
Shutter: 1/48 to 1/2000 s depending on frame rate; cinematic indicators (ISO, degrees, feet) on the camera head
System formats: 3840 x 2160 and 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p
Video I/O: SDI OUT 1: BNC, 12G/6G/3G/1.5G-SDI; SDI OUT 2: BNC, 3G/1.5G-SDI; AUX: BNC, switchable GL/RET IN, HD TRUNK or Prompter
IP: CCU-less SMPTE ST 2110-20 HD uncompressed from the camera head (latest software, hardware update on request), ST 2110-22 JPEG XS UHD planned; with AK-UCU700 series CCU, 4K/HD uncompressed and JPEG XS with redundancy (ST 2110 standard on AK-UCU710, AK-NP701 option on AK-UCU700); compatible with the KAIROS IT/IP platform
CCU compatibility: AK-UCU700 / AK-UCU710 series; AK-HCU250 series (4K output requires AK-HUC01 kit); AK-UCU600 with software update and paid hardware upgrade
Fiber transmission: Optical composite connector; up to 2 km (1.2 mi) with AK-UCU700 or 1.2 km (0.75 mi) with AK-HCU250 when powered from the CCU; up to 10 km (6.2 mi) with external camera power and general-purpose optical transmission equipment
TRUNK: One 3G/1.5G-SDI line CCU to camera and one camera to CCU, each with frame synchronizer
Image functions: Digital extender 2x, Dynamic Range Stretch (DRS), focus assist, skin tone detail correction, linear matrix, 12-axis color correction, color temperature 2000 K to 15000 K
Audio and intercom: MIC 2: XLR 3-pin; front MIC: XLR 3-pin (line/mic/48 V phantom switchable); Intercom 1: XLR 5-pin
Other connectors: Optical fiber; Lens 12-pin; VF 20-pin and rear VF 29-pin; DC IN XLR 4-pin (12 V); LAN RJ-45
Camera control: Remote Operation Panels AK-HRP1000GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ; Master Setup Unit AK-MSU1000GJ; viewfinders AK-HVF100GJ, AK-HVF75GJ
Power: DC 12 V (external supply); AC 240 V, 50/60 Hz with AK-UCU710 / AK-UCU700 series; DC 190 V with AK-HCU250 series
Power consumption: 82 W maximum (external 12 V); 92 W maximum with CCU connected
Operating environment: -10 to 45 C (14 to 113 F), preheating required at 0 C (32 F) or below; humidity 85% or less
Storage temperature: -20 to 60 C (-4 to 140 F)
Dimensions (W x H x D): 151 x 267 x 389 mm (5-31/32 x 10-17/32 x 15-5/16 in), body only, excluding protrusions
Weight: Approx. 4.2 kg (9.26 lb), body only
