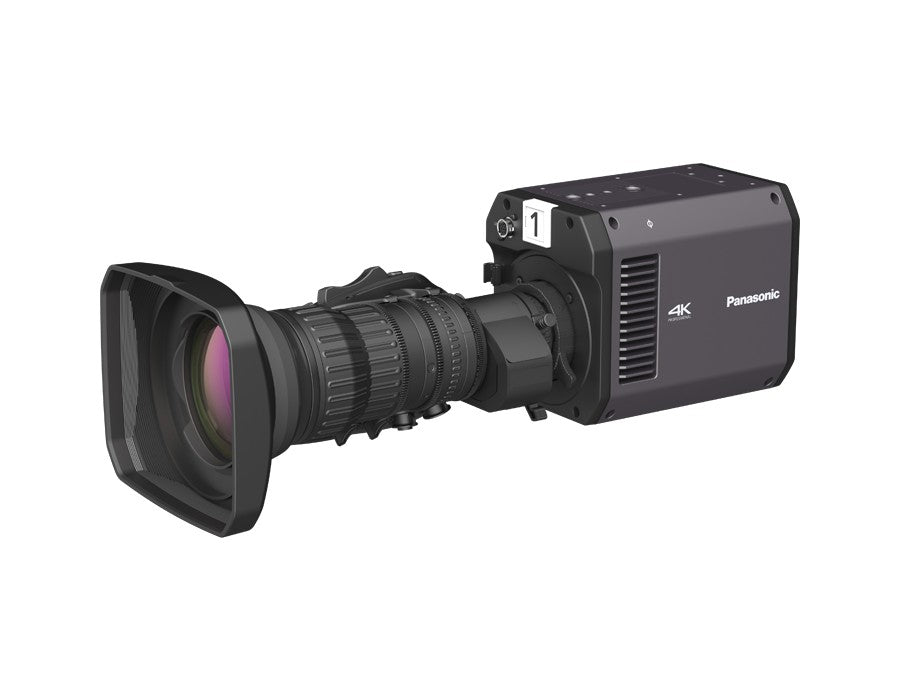

Panasonic AK-UBX100GJ is a compact 1.9 kg box-style 4K camera with a B4 mount for studio, sports, stage and robotic or remote production. It shares the AK-UCX100 platform, with a 19.29-million-pixel sensor, 2000 TV lines, HLG and SDR together and built-in autofocus. Two 12G-SDI outputs and dual SFP28 25G slots carry SMPTE ST 2110, NDI High Bandwidth and SRT.
Camera: AK-UBX100GJ
Type: Box-style 4K multipurpose camera on the same platform and menu interface as the AK-UCX100 studio camera
Image sensor: 19.29-million-pixel MOS sensor; oversampling for 2000 TV lines horizontal and vertical
Lens mount: 2/3-type bayonet (B4)
Optical filters: ND turret: Clear, 1/4, 1/16, 1/64; standard UHD optical low-pass filter; optional HD optical low-pass filter (replaces the UHD OLPF or fits the turret) for moire reduction
Sensitivity: Low Light mode F10 (59.94 Hz) / F11 (50 Hz); Normal mode F6 (59.94 Hz) / F7 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
Horizontal resolution: UHD: 2000 TV lines or above (center); HD: 1000 TV lines or above (center)
Gain: -6 to 18 dB in 3 dB steps
Shutter: 1/48 to 1/2000 s depending on frame rate; synchro scan up to 7200 Hz
System formats: 3840 x 2160 and 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p
HDR and color: HLG (ITU-R BT.2020) and SDR (BT.709) simultaneously
Video I/O: 12G SDI OUT 1 and 2: BNC, 12G/6G/3G/1.5G-SDI (redundant, HDR/SDR or clean/dirty); HD SDI OUT: BNC, 3G/1.5G-SDI; G/L IN: BNC
IP: Two SFP+/SFP28 slots (modules sold separately); SMPTE ST 2110 with network redundancy and HD return input; NDI High Bandwidth; SRT; FreeD (lens information); SDI over fiber with an SDI-compatible SFP module
Control and tally: Camera control and tally on a single LAN line; uses the same Remote Operation Panels as the AK-UCX100 and AW-UE160 (e.g. AK-HRP1010GJ, AK-HRP1015GJ, AW-RP150GJ, AW-RP60GJ); AK-MSU1000GJ
Focus: High-precision focus assist with image-plane phase-detection focus guide; built-in phase detection autofocus (PDAF)
LED color adjustment: Color Temp. Blend, Target Color Correction and Chroma Suppression, scheduled via firmware update (November 2026)
Other functions: Low-skew scan mode, remote back focus adjustment, F-drop and vignetting compensation; flat sides with 1/4-inch screw holes for tripod, gimbal, ceiling, crane or robotic mounting
Other connectors: Lens 12-pin; DC IN XLR 4-pin; Remote 10-pin; Tally OUT 4-pin; LAN RJ-45
Power: DC 12 V (11 to 17 V)
Power consumption: 40 W (body only, 12G-SDI output); 60 W maximum with all accessories and outputs
Operating environment: -10 to 45 C (14 to 113 F), preheating required at 0 C (32 F) or below; humidity 85% or less
Storage temperature: -20 to 60 C (-4 to 140 F)
Dimensions (W x H x D): 118 x 140 x 175 mm (4-21/32 x 5-17/32 x 6-57/64 in), excluding protrusions
Weight: Approx. 1.9 kg (4.19 lb), body only
