Panasonic AK-UC3300GSJ is a 4K HDR studio camera for studio and live production. An 11.14-megapixel 4K MOS sensor on a B4 mount delivers 2000 TV lines with F10 sensitivity, HDR with BT.2020, 2x HD high-speed shooting and a built-in ND filter wheel. With the AK-UCU700 CCU it adds 12G-SDI, SMPTE ST 2110, Dante, NDI and SRT over long-distance fiber.
Camera: AK-UC3300GSJ
Image sensor: 11.14-megapixel 4K MOS sensor; oversampling for 2000 TV lines horizontal and vertical
Lens mount: 2/3-type bayonet (B4); no build-up unit support (box lenses need a lens supporter from the lens maker)
Optical filter: Built-in ND: Clear, 1/4, 1/16, 1/64 (motorized ND filter wheel (per Panasonic North America configuration listing))
Sensitivity: High Sens mode F10 (59.94 Hz) / F11 (50 Hz); Normal mode F6 (59.94 Hz) / F7 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
Horizontal resolution: 4K: 2000 TV lines or above (center, AK-UCU600 output); HD: 1000 TV lines or above (center)
Horizontal modulation: 50% or above (27.5 MHz)
Gain: -6 to 36 dB in 3 dB steps (Normal and High Sens); shockless gain
Shutter: 1/48 to 1/2000 s depending on frame rate
System formats: 3840 x 2160 at 59.94p, 50p, 29.97p, 25p, 23.98p; 1920 x 1080 at 59.94p, 59.94p (2x), 50p, 50p (2x), 29.97p, 25p, 23.98p (supported formats vary with the connected CCU)
HD high-speed: 2x: 1080/59.94p and 1080/59.94i at 120 fps, 1080/50p and 1080/50i at 100 fps; 720p 2x with AK-UCU600 series; AK-UCU700 series high-speed support planned
HDR and color: Variable HDR with simultaneous 4K HDR/SDR operation; ITU-R BT.2020 color space
Camera head video I/O: HD-SDI 1 and HD-SDI 2: BNC, 3G/1.5G-SDI; AUX: BNC, HD TRUNK (1.5G-SDI) or Prompter 2 (VBS); G/L IN / Prompter OUT: BNC
4K and IP outputs: Via CCU: 12G-SDI uncompressed, SMPTE ST 2110, Dante, NDI and SRT with the AK-UCU700 series (ST 2110 option AK-NP701G required on AK-UCU700); also compatible with AK-UCU600 series
Fiber transmission: Optical composite connector; approx. 2 km (1.2 mi) when powered from the CCU, up to 10 km (6.2 mi) with external camera power and general-purpose optical transmission equipment
TRUNK: Two HD-SDI lines (CCU to camera) with frame synchronizer, one HD-SDI line (camera to CCU), 1000BASE-T LAN; VBS return and RS-422A/RS-232C data lines with AK-UCU600 series only
Image functions: Low-skew shooting, digital extender 2x, Chromatic Aberration Compensation (CAC), flash band correction, focus assist, 12-pole color correction, skin tone detail correction
Audio and intercom: MIC 1 and MIC 2: XLR 3-pin (line/mic/48 V phantom switchable); front MIC: XLR 3-pin; Intercom 1 and 2: XLR 5-pin; earphone: stereo mini jack
Other connectors: Lens 12-pin; VF 20-pin and rear VF 29-pin; DC IN XLR 4-pin (12 V); DC OUT 12 V 1 A (4-pin); RET CTRL
Camera control: Remote Operation Panels AK-HRP1000GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ; Master Setup Unit AK-MSU1000GJ; IP control supported
Power: DC 12 V (external supply) or AC 240 V, 50/60 Hz when connected to an AK-UCU600 series CCU
Power consumption: 119 W maximum (external 12 V, including connected devices); 170 W maximum with AK-UCU600 series connected
Operating environment: -10 to 45 C (14 to 113 F), preheating required at 0 C (32 F) or below; humidity 85% or less
Storage temperature: -20 to 60 C (-4 to 140 F)
Dimensions (W x H x D): 151 x 267 x 374 mm (5-31/32 x 10-17/32 x 14-23/32 in), body only, excluding protrusions
Weight: Approx. 4.3 kg (9.46 lb), body only

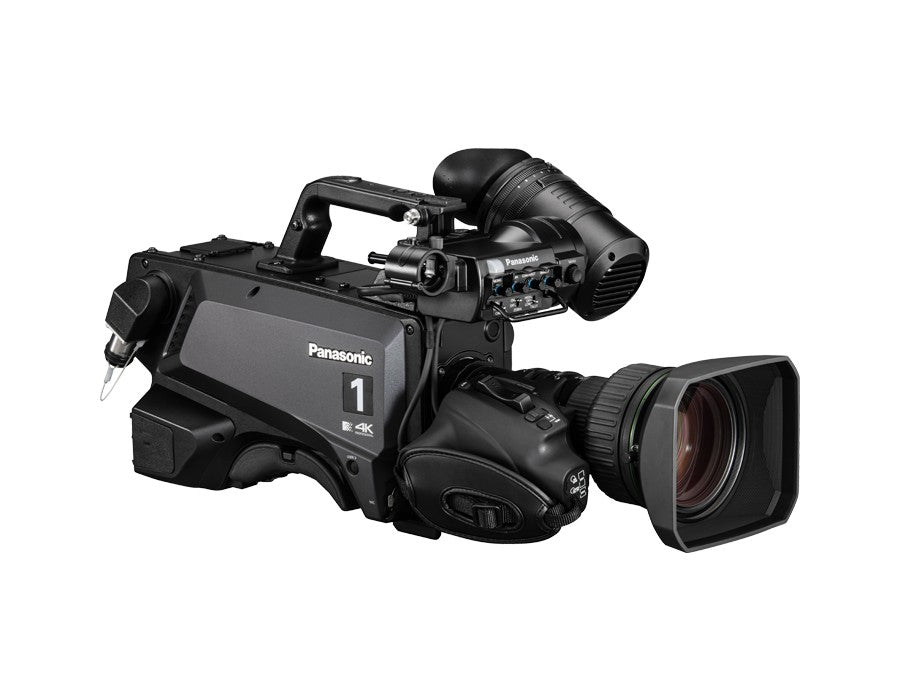

AK-UC3300GSJ camera. Lens and viewfinder are optional accessories, sold separately.
