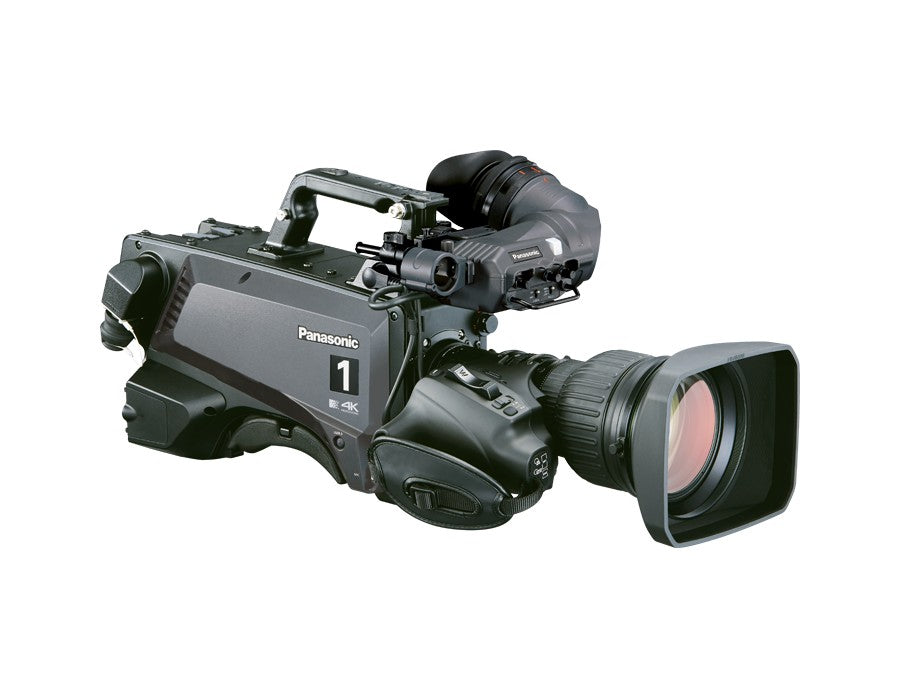

Panasonic AK-UC4000BGS is the studio version of the AK-UC4000 4K HDR camera, without the power supply function for the AK-HBU500 build-up kit. It keeps the 11.14-megapixel 4K MOS sensor, B4 mount, 2000 TV lines, HLG HDR with BT.2020 and HD high-speed output, and connects over LEMO fiber to AK-UCU700 or AK-UCU600 CCUs for 12G-SDI and SMPTE ST 2110 IP workflows.
Configuration: AK-UC4000BGS
Build-up kit: Without AK-HBU500 build-up kit interconnection (no HBU500 power supply function)
Power consumption with CCU: 170 W (versus 360 W for AK-UC4000GSJ)
Camera: AK-UC4000BGS
Model note: AK-UC4000BGS is the LEMO-connector studio version without the power supply function for the AK-HBU500 build-up unit
Image sensor: 11.14-megapixel 4K MOS sensor (single, large format); beyond-4K sampling
Lens mount: 2/3-type bayonet (B4); 2/3-inch lenses mount without an adapter
Optical filters: Servo-controlled ND: CAP, Clear, 1/4, 1/16, 1/64; CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion
Sensitivity: High Sens mode F10 (59.94 Hz) / F11 (50 Hz); Normal mode F6 (59.94 Hz) / F7 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
Horizontal resolution: 4K: 2000 TV lines or above (center, AK-UCU600 output); HD: 1000 TV lines or above (center)
S/N: 62 dB or above (HD output)
Horizontal modulation: 50% or above (27.5 MHz)
Gain: -6 to 36 dB in 3 dB steps (Normal and High Sens); shockless gain with 0.1 dB master gain steps
Shutter: 1/48 to 1/2000 s depending on frame rate
System formats (with AK-UCU700 series CCU):
- UHD 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
- HD 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p
- Camera standalone (HD-SDI 1/2): 1080p, 1080i or 720p selectable
HD high-speed: 2x, 3x or 4x output in 1080p and 1080i (1080/59.94p up to 240 fps, 1080/50p up to 200 fps); 720p high speed with AK-UCU600 only; AK-UCU700 high-speed support via firmware update
HDR and color: HDR (HLG) with variable HDR adjustment and simultaneous HDR/SDR operation; ITU-R BT.2020 color space
Camera head video I/O: HD-SDI 1 and HD-SDI 2: BNC, 3G/1.5G-SDI; AUX: BNC, HD TRUNK (1.5G-SDI) or Prompter 2 (VBS); G/L IN / Prompter OUT: BNC (tri-level sync or black burst)
4K and IP outputs: Via CCU: AK-UCU700 series adds two 12G-SDI among eight SDI outputs, SMPTE ST 2110 (standard on AK-UCU710, AK-NP701G option on AK-UCU700), Dante audio (AK-NP702G option on AK-UCU700), NDI and SRT (AK-NP703G option); also compatible with AK-UCU600 series CCUs
Fiber transmission: Optical composite connector (LEMO on GSJ/BGS, Tajimi on GJ); uncompressed UHD and HD to the CCU, up to 10,000 m (32,800 ft) over single fiber (longer runs may require repeaters)
TRUNK: HD-SDI and VBS return lines (CCU to camera), one HD-SDI line with frame synchronizer (camera to CCU), 1000BASE-T LAN and RS-422A/RS-232C data lines over the fiber (some lines with AK-UCU600 series only)
Audio and intercom: MIC 1 and MIC 2: XLR 3-pin (line/mic/48 V phantom switchable); front MIC: XLR 3-pin; Intercom 1 and 2: XLR 5-pin; earphone: stereo mini jack
Other connectors: Lens 12-pin; VF 20-pin and rear VF 29-pin; DC IN XLR 4-pin (12 V); DC OUT 12 V 1 A (4-pin) and 12 V 2.5 A (2-pin); RET CTRL 6-pin; EXT I/O 20-pin; Remote 10-pin; TRUNK 12-pin; LAN RJ-45; USB 2.0 host (Type A); build-up 20-pin
Camera control: Remote Operation Panels AK-HRP1000GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ; Master Setup Unit AK-MSU1000GJ; IP control and streaming supported
Image functions: Chromatic Aberration Compensation (CAC), normal and low-skew high-speed scan, 12-pole color correction, skin tone detail correction, focus assist (Focus Bar, Focus-in-Red, MAG, Square), color temperature 2000 K to 15000 K
Power: DC 12 V (external supply) or AC 240 V, 50/60 Hz when connected to an AK-UCU600 series CCU
Power consumption: 119 W maximum (camera only, external 12 V); 170 W when connected to an AK-UCU600 series CCU
Operating environment: -10 to 45 C (14 to 113 F), preheating required at 0 C (32 F) or below; humidity 85% or less
Storage temperature: -20 to 60 C (-4 to 140 F)
Dimensions (W x H x D): 151 x 267 x 371.5 mm (5-31/32 x 10-17/32 x 14-21/32 in), body only, excluding protrusions
Weight: Approx. 4.5 kg (9.90 lb), body only
