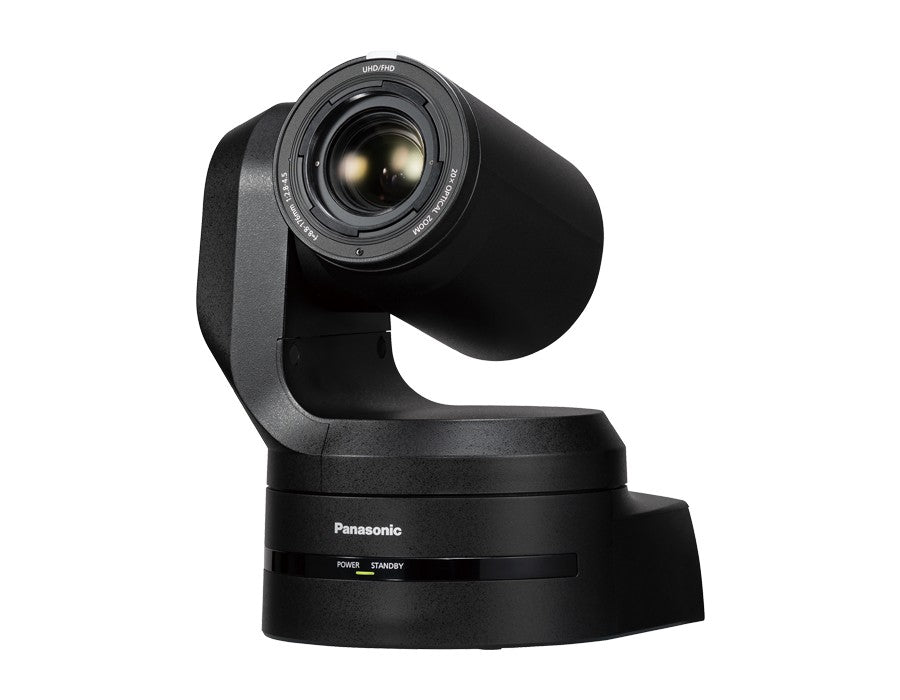

Panasonic AW-HE145KPJ is the black North American model of the AW-HE145 HD integrated PTZ camera, built for stage events, worship services and live production. A 1-type MOS sensor rated F9 at 2000 lx, 20x optical zoom with a 75.1 degree wide angle, OIS and HLG HDR deliver 1080/60p over 3G-SDI and HDMI, with NDI HX2, SRT and RTMP streaming, FreeD output and pan/tilt speeds up to 180 degrees per second.
Configuration: AW-HE145KPJ
Region: North American model (Panasonic North America lists AW-HE145KPJ)
Camera: AW-HE145
Type: HD integrated PTZ camera (pan-tilt head, lens and camera in one unit)
Sensor: 1-type (1 in) Full-HD MOS, approx. 20.18 million effective pixels
Lens: Motorized optical 20x zoom, F2.8 to F4.5, f=8.8 mm to 176.0 mm (35 mm equivalent: 24.5 mm to 490.0 mm)
Zoom: Optical 20x; i.Zoom FHD 32x; digital zoom 10x
Angle of view: Horizontal 75.1° (wide) to 4.0° (tele); vertical 46.7° to 2.3°; diagonal 82.8° to 4.6°
Optical filter: Through, 1/4, 1/16, 1/64 ND, IR through (used as night mode)
Focus: Auto/manual; minimum focus distance 1000 mm (3.3 ft) full zoom range, 100 mm (0.33 ft) at wide end
Sensitivity: F9 at 2,000 lx (normal mode)
Minimum illumination: 2 lx (F2.8, 59.94p, 50 IRE, 42 dB)
Horizontal resolution: 1,000 TV lines (center)
Gain: Auto, 0 dB to 36 dB (1 dB steps), Super Gain 37 dB to 42 dB; frame mix up to 24 dB
Image stabilization: Optical Image Stabilizer (OIS)
HDR and gamma: HLG (BT.2020); HD, FILMLIKE1, FILMLIKE2, FILMLIKE3, FILM REC, VIDEO REC gamma
HD formats: 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/29.97PsF, 25PsF, 23.98PsF, 1080/59.94i, 50i, 720/59.94p, 50p
4K formats: 2160/29.97p, 25p, 24p, 23.98p on HDMI output only, with firmware 1.33 or later
Video outputs: 3G-SDI x1 (BNC, Level-A/Level-B), HDMI 2.0 (4:2:2 10-bit)
IP streaming: NDI HX2 (firmware 1.13 or later; HD only); H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP; up to 1920x1080
Audio input: 3.5 mm stereo mini jack (mic or line), AAC on IP streams only
Sync: Genlock: BBS (black burst) or tri-level sync (BNC)
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45); FreeD tracking data for AR/VR; web browser GUI
Compatible controllers: AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ
Other features: Adaptive Matrix to prevent colour overload from blue LEDs, large tally lamp with tally LED limit, JPEG still capture (up to 100 images in camera memory)
Pan/tilt: Pan ±175°, tilt -30° to 210°; speed 0.08°/s to 60°/s or higher, max 180°/s in high-speed mode
Noise: NC35 or less (normal mode)
Installation: Desktop or suspended (hanging), secured with the supplied mount bracket
Power: 12 V DC (10.8 V to 13.2 V) via XLR, 4.0 A; or PoE++ (42 V to 57 V), 1.2 A
Dimensions (W x H x D): 213 x 267 x 219 mm (8-3/8 x 10-1/2 x 8-5/8 in), excluding protrusions and direct ceiling mount bracket
Weight: Approx. 4.1 kg (9.04 lb), excluding mount bracket
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-HE145 camera (black), twist-lock ceiling mount bracket, safety cable
