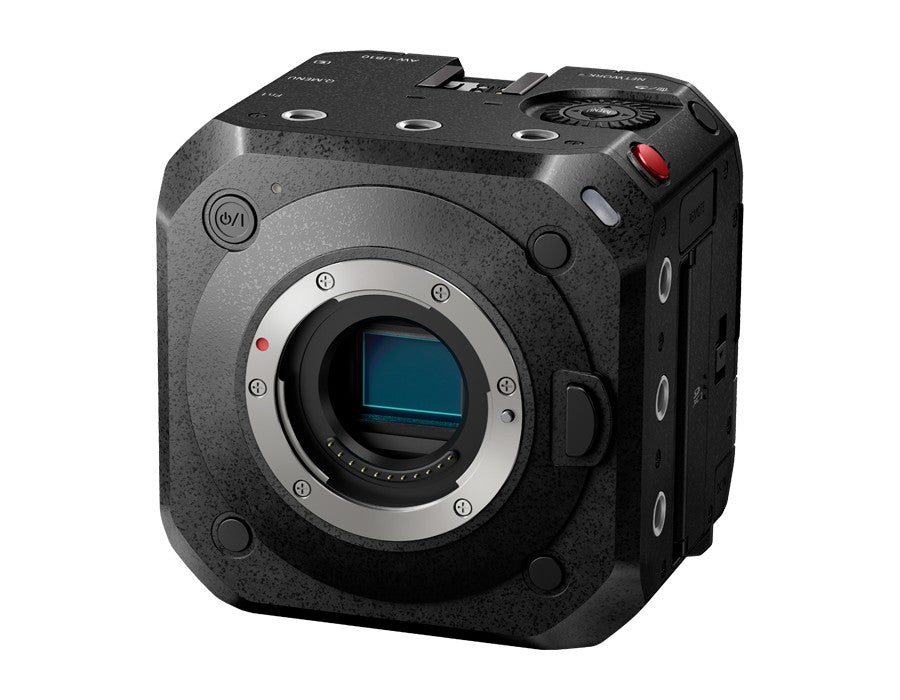

Panasonic AW-UB10P is the North American model of the AW-UB10, a compact box-style 4K multi-purpose camera with a 10.3M 4/3-type sensor and Micro Four Thirds mount for multi-camera, esports, remote and rigged shooting. It offers V-Log L with 13 stops, dual native ISO, C4K/4K 60p 10-bit recording, 3G-SDI, HDMI, GENLOCK and PoE plus power with PTZ-style IP control.
Configuration: AW-UB10P
Region: North American model
Lens: Body only; Micro Four Thirds lens required (per Panasonic North America configuration listing)
Camera: AW-UB10
Type: Interchangeable-lens 4K box-style multi-purpose camera
Sensor: 4/3-type MOS, approx. 10.3 million effective pixels
Lens mount: Micro Four Thirds (lens not included)
Dynamic range and log: V-Log L, 13 stops; Hybrid Log Gamma, Like709, Cinelike D2/V2
Sensitivity: Dual native ISO (base ISO 160/800 in Normal mode); ISO 160 to 51200 (extended 80 to 204800); gain 0 to 50 dB
Autofocus: AF/MF; real-time recognition AF (face, eye, body, animal), tracking, 225-area, zone and 1-area
Recording formats: MOV: C4K/4K 59.94p HEVC 4:2:0 10-bit 200 Mbps; C4K/4K up to 29.97p 4:2:2 10-bit ALL-I 400 Mbps; 4:3 anamorphic 4K (3328x2496); FHD up to 59.94p 4:2:2 10-bit ALL-I 200 Mbps. MP4: 4K H.265 and H.264, FHD H.264
Variable frame rate: FHD up to 180 fps (full image area) and up to 240 fps (pixel-by-pixel; angle of view narrows above 200 fps)
Recording media: Dual SD/SDHC/SDXC slots (UHS-I/UHS-II, UHS Speed Class 3, Video Speed Class 90); relay or backup recording
Audio: 3.5 mm external mic/line input (plug-in power); XLR 3-pin x2 (INPUT1, INPUT2), LINE/MIC/MIC plus 48 V, as listed in Panasonic specifications (DMW-XLR1 and DMW-XLR2 XLR microphone adapters are listed as optional accessories); 3.5 mm headphone
Video outputs: 3G-SDI x1 (BNC, 0.8 V p-p, 75 ohm, timecode output); HDMI Type A (timecode output)
Sync and timecode: GENLOCK IN (BNC); TC IN/OUT (BNC)
IP and streaming: LAN RJ-45 for remote control and PoE+ power; H.264 streaming up to 3840x2160 59.94p 50 Mbps over RTP/RTSP; NDI HX2, RTMPS and SRT support announced by Panasonic as planned
Camera control: Common IP control protocol shared with Panasonic PTZ cameras; AK-HRP1010GJ/AK-HRP1015GJ remote operation panels, AW-RP150GJ/AW-RP60GJ remote camera controllers listed as accessories; Media Production Suite (Easy IP mode); LUMIX Tether for Multicam; 2.5 mm REMOTE IN
USB: USB Type-C (USB 3.1 Gen1)
Color matching: PTZ camera (AW-UE160) photo style for color matching with AW-UE160 4K PTZ cameras
Shutter (movie): 1/16,000 to 1/2 sec
Power: DC 7.28 V (lithium-ion battery pack), DC 12 V/3 A (included AC adaptor, EIAJ Type 4), or PoE+ (IEEE 802.3at)
Operating environment: -10 to 40 °C (14 to 104 °F), 10% to 80% humidity
Power consumption: 7.9 W recording with H-ES12060 lens; 6.7 W playback
Dimensions (W x H x D): 93.0 x 93.0 x 78.0 mm (3.66 x 3.66 x 3.07 in), excluding protrusions
Weight: Approx. 545 g (1.2 lb), body only
AW-UB10 camera body, AC adaptor (SAE0011AM)
