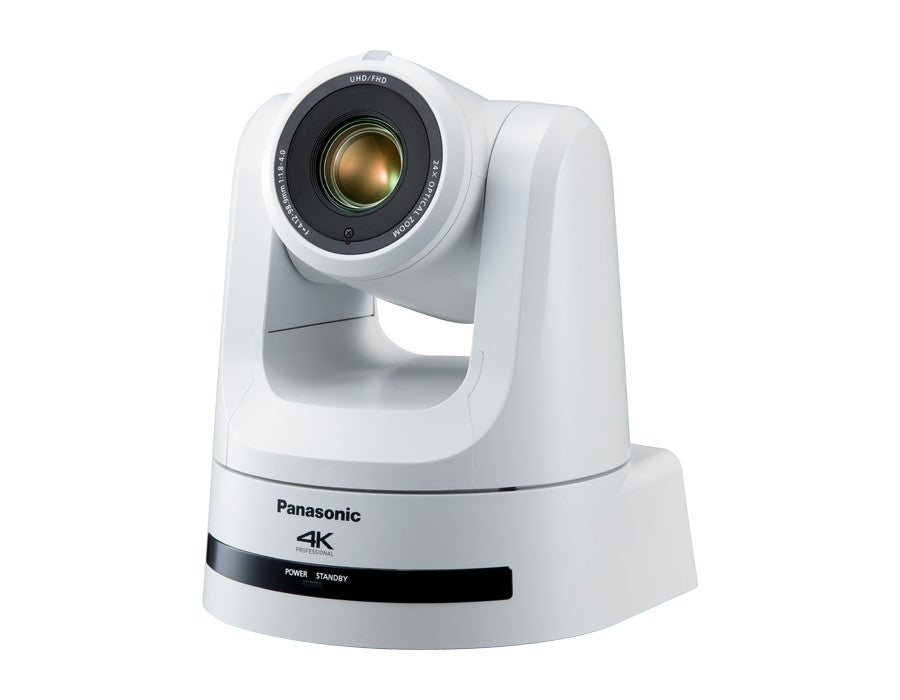

Panasonic AW-UE100WPJ is the white North American model of the AW-UE100 4K/60p PTZ camera for studios, concerts, worship and live events. A 1/2.5-type 4K sensor, 24x optical zoom with a 74.1 degree wide angle, OIS plus roll EIS and a quiet NC25 Direct Drive head feed 12G-SDI, 3G-SDI and HDMI, with full NDI, NDI HX2, SRT, genlock, FreeD and IEEE 802.3bt PoE power.
Configuration: AW-UE100WPJ
Region: North American model (Panasonic North America lists AW-UE100WPJ)
Camera: AW-UE100
Type: 4K integrated PTZ camera (pan-tilt head, lens and camera in one unit)
Sensor: 1/2.5-type 4K MOS, approx. 8.49 million effective pixels
Lens: Motorized optical 24x zoom, F1.8 to F4.0, f=4.12 mm to 98.9 mm (35 mm equivalent: 25.0 mm to 600.0 mm)
Zoom: Optical 24x; i.Zoom UHD 28x, FHD 36x; digital extender 1.4x, 2x
Angle of view: Horizontal 74.1° (wide) to 3.3° (tele); vertical 46.0° to 1.9°; diagonal 81.8° to 3.8°
Optical filter: Through, 1/4, 1/16, 1/64 ND, IR through (used as night mode)
Focus: Auto/manual; minimum focus distance 1200 mm (3.9 ft) full zoom range, 100 mm (0.33 ft) at wide end
Sensitivity: F4 at 2,000 lx (normal mode), F5.6 at 2,000 lx (High Sens mode)
Minimum illumination: 3 lx (F1.8, 59.94p, 50 IRE, 42 dB)
S/N: 60 dB (typical, Normal shooting mode)
Horizontal resolution: 1,500 TV lines (center)
Gain: Auto, 0 dB to 36 dB (1 dB steps), Super Gain 37 dB to 42 dB; frame mix up to 24 dB
Image stabilization: Optical Image Stabilizer (OIS) plus Electronic Image Stabilization (EIS) for the roll direction
Gamma: HD, FILMLIKE1, FILMLIKE2, FILMLIKE3
4K formats: 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p (12G-SDI and HDMI)
HD formats: 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/29.97PsF, 25PsF, 23.98PsF (SDI only), 1080/59.94i, 50i, 720/59.94p, 50p
Video outputs: 12G-SDI x1 (BNC), 3G-SDI x1 (BNC), HDMI 2.0 (4:2:2 10-bit)
IP streaming: NDI High Bandwidth and NDI HX2 included as standard (HX2 with firmware 1.56 or later, HD only); H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP; up to 3840x2160
Audio input: 3.5 mm stereo mini jack (mic or line); embedded on SDI, HDMI and IP; 48 kHz, 24-bit on SDI/HDMI
Sync: Genlock: BBS (black burst) or tri-level sync (BNC)
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45); FreeD tracking data for AR/VR; web browser GUI; compatible with the KAIROS IT/IP platform
Compatible controllers: AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (not available in some areas), AK-HRP250GJ
Other features: Direct Drive pan/tilt motor, crop output (up to 3 areas) with crop zoom, tally LED limit
Pan/tilt: Pan ±175°, tilt -30° to 210°; speed 0.08°/s to 60°/s (Normal), max 90°/s (Fast1) and 180°/s (Fast2)
Installation: Desktop or suspended (hanging), secured with the supplied mount bracket
Power: 12 V DC (10.8 V to 13.2 V) via supplied AC adaptor, 3.0 A; or PoE++ (IEEE 802.3bt, 42 V to 57 V), 1.0 A
Dimensions (W x H x D): 169.2 x 204.6 x 170.6 mm (6-21/32 x 8-1/16 x 6-23/32 in), excluding protrusions, cable cover and mount bracket
Weight: Approx. 2.2 kg (4.84 lb) excluding cable cover and mount bracket; approx. 2.3 kg (5.06 lb) with cable cover
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-UE100 camera (white), AC adaptor, mount bracket
