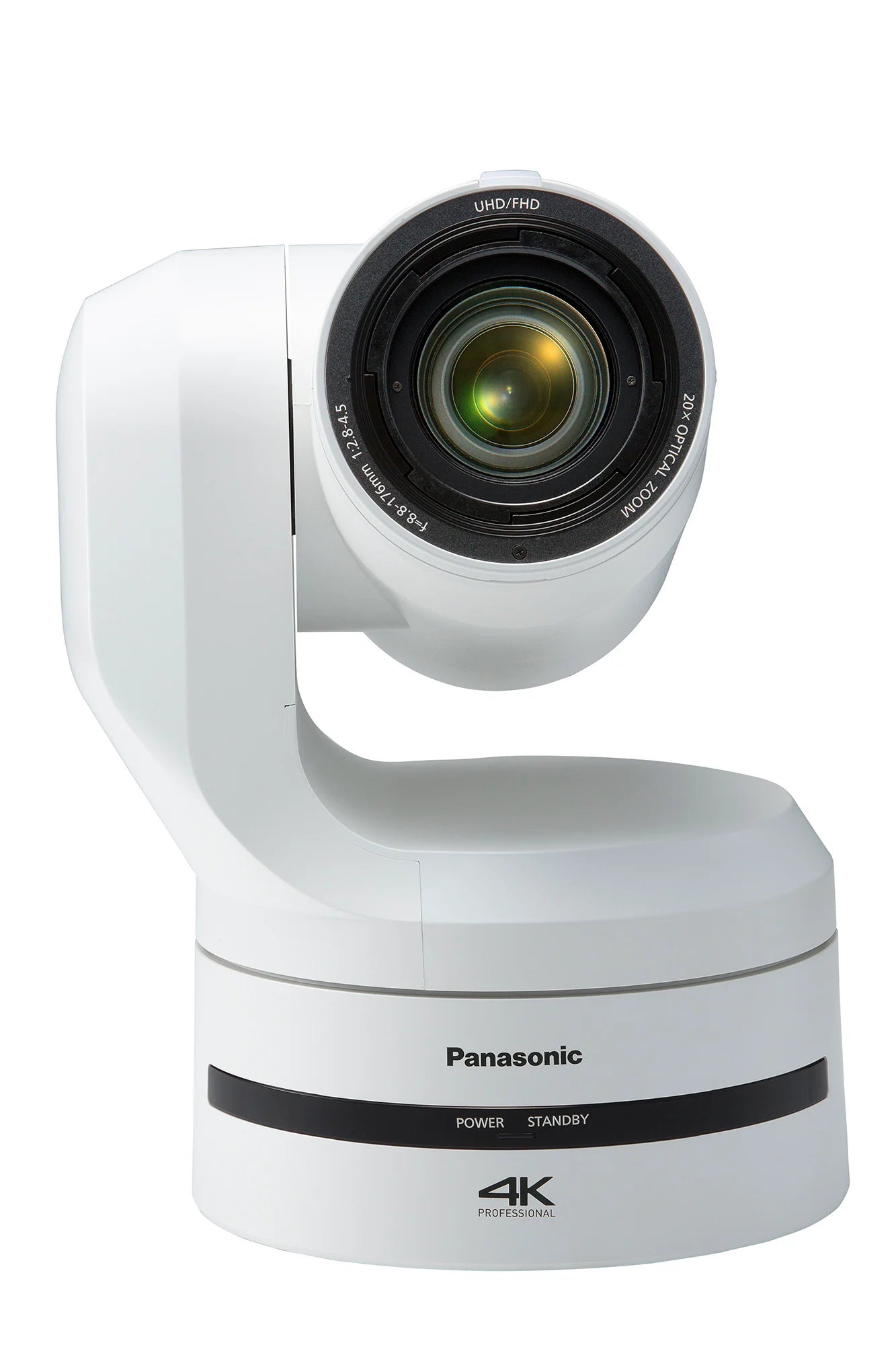

The Panasonic AW-UE150AWPJ is a professional white integrated PTZ camera featuring a 1-inch sensor, 4K/60p capture, built-in optical low-pass filter, and Full NDI support for high-quality broadcast, live production, and IP-based workflows.
Power Requirements: DC 12 V (10.8 V–24.0 V) or PoE++ (IEEE 802.3 bt; 42 V–57 V, with LLDP support)
Current Consumption: 4.0 A (XLR), 1.2 A (PoE++)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity: 20 %–90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Weight: Approx. 4.3 kg (9.48 lbs), excluding mount bracket
Dimensions: 213 × 267 × 219 mm (W × H × D)
Sensor: 1-type 4K MOS sensor (high-sensitivity)
Effective Pixels: Approx. 20.18 M pixels
Lens: Motorized optical zoom, 20× (F2.8–F4.5)
-
f = 8.8 mm to 176 mm (35 mm equivalent: 24.5 mm–490 mm)
Optical Zoom: 20× (plus i.Zoom: UHD 24×, FHD 32×)
- Horizontal: 75.1° (wide) to 4.0° (tele)
- Vertical: 46.7° to 2.3°
Focus: Auto / Manual selectable
Minimum Illumination: 2 lx (F2.8, typical)
Standard Sensitivity: F9 at 2000 lx
Optical Filter: Through, 1/4, 1/16, 1/64; IR through (Night Mode)
Horizontal Resolution: ~2000 TV lines (center)
Gain Control: Auto, –3 dB to 36 dB (plus Super Gain)
- UHD 4K up to 2160/59.94p
- HD up to 1080/59.94p, 1080/50p, 720/59.94p & 720/50p
-
HDMI 2.0 (4:2:2/10-bit)
-
12G-SDI (BNC) (Level-A/Level-B supported)
-
3G-SDI OUT1 (optional / depending on model)
IP Support: IPv4 & IPv6 with TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTMP/S, DHCP, DNS, SNMP, etc.
-
NDI® Support: NDI®HX2 & NDI® High Bandwidth
-
SRT, RTMP/RTMPS supported
NDI High Bandwidth Streaming:
- 4K up to 2160/59.94p
- HD up to 1080/59.94p & 720/59.94p
