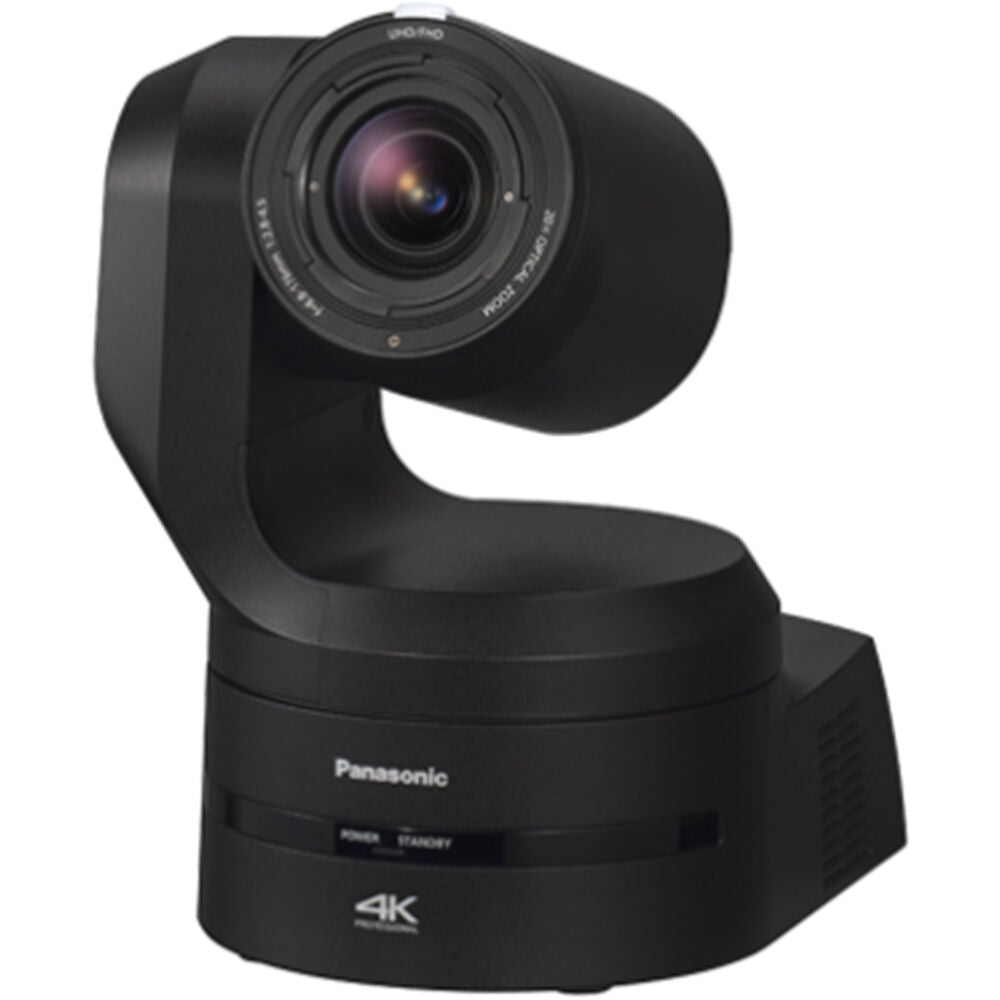

Panasonic AW-UE160KPJ 4K/60P PTZ Camera w/OLPF & 20x Optical Zoom in Black

Power: 12 V DC ± 10 % (10.8 V–13.2 V) or PoE++ (IEEE 802.3bt, 42 V–57 V)

Current Consumption: 5.0 A (XLR), 1.5 A (PoE++)

Operating Temp: 0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity: 20 %–90 % (non-condensing)

Storage Temp: –20 °C to 50 °C (–4 °F to 122 °F)

Weight: Approx. 4.6 kg (10.14 lbs) (excluding mount)

Dimensions: 213 × 277 × 240 mm (W×H×D)

Sensor: 1-type (1") 4K MOS (effective)

Effective Pixels: Approx. 9.62 million

Lens: Motorized optical 20× zoom (F2.8–F4.5; 8.8 mm–176 mm; 24.5 mm–490 mm equiv.)

Optical Zoom: 20×; i.Zoom: UHD 24×, FHD 32×; Digital Extender: 1.4×, 2×

Angle of View: Horizontal 75.1° (wide) to 4.0° (tele)

Focus: Auto / Manual selectable

Standard Sensitivity: F14 / 2000 lx (low light)

Optical Filter: Through, 1/4, 1/16, 1/64 (Through used as “Night Mode”)

Horizontal Resolution: ~1600 TV lines (center, UHD mode)

UHD 4K: up to 2160/60p, 2160/59.94p, 2160/50p, etc.

HD: up to 1080/60p, 1080/50p, 720/59.94p, etc.

Output Formats Supported: SMPTE ST2110 uncompressed (HD & 4K), SMPTE ST2110 JPEG XS compressed

• NDI® / IP: Supports various IP streaming and control protocols (NDI, SRT, RTMP, etc.) (detailed in features)
• SMPTE ST 2110: Native standard support (industry first for PTZ class)
• Return Input & 5G Mobile Router Support: For high-speed transmission and return feed use cases
• Auto Framing (AI): Built-in automatic framing function
