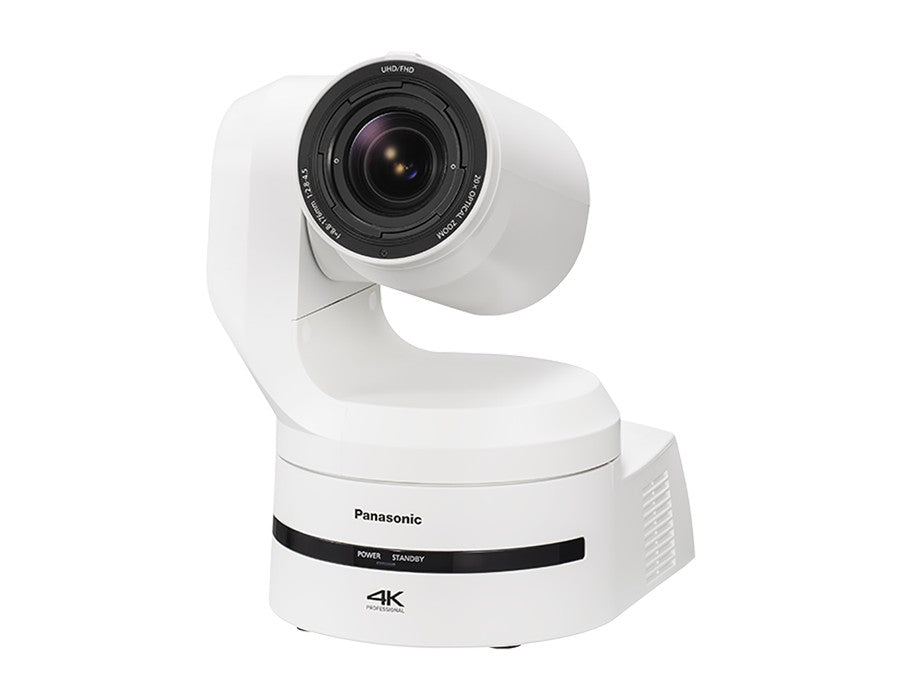

Panasonic AW-UE160WPJ is the pearl white North American model of the AW-UE160 4K/60p PTZ camera, built for concerts, worship, studios and live events. A 1-type 4K MOS sensor with optical low-pass filter for clean shots of LED walls, 20x optical zoom, PDAF autofocus, HLG and V-Log, FHD 120 fps, 12G-SDI, fiber, NDI and SRT, plus SMPTE ST 2110 with the optional AW-SFU60 key.
Configuration: AW-UE160WPJ
Region: North American model
Optical low-pass filter: Installed (standard on AW-UE160)
Optional: AW-SFU60 software key required to activate SMPTE ST 2110
Camera: AW-UE160
Type: 4K integrated PTZ camera (pan-tilt head, lens and camera in one unit)
Sensor: 1-type (1 in) 4K MOS (effective size), approx. 9.62 million effective pixels
Lens: Motorized optical 20x zoom, F2.8 to F4.5, f=8.8 mm to 176.0 mm (35 mm equivalent: 24.5 mm to 490.0 mm)
Zoom: Optical 20x; i.Zoom UHD 24x, FHD 32x; digital extender 1.4x, 2x
Angle of view: Horizontal 75.1° (wide) to 4.0° (tele); vertical 46.7° to 2.3°; diagonal 82.8° to 4.6°
Optical filter: Through, 1/4, 1/16, 1/64 ND (Through used as night mode); built-in optical low-pass filter for moiré reduction
Focus: Auto/manual with PDAF (phase detection autofocus) and focus assist display; minimum focus distance 1000 mm (3.3 ft) full zoom range, 100 mm (0.33 ft) at wide end
Sensitivity: F14 at 2,000 lx (Low Light), F11 at 2,000 lx (Normal) (59.94 Hz)
Horizontal resolution: 1,600 TV lines (center, UHD mode, wide end)
Gain: Auto, -6 dB to 12 dB (1 dB steps); frame mix up to 24 dB
Image stabilization: OIS 2-axis plus hybrid roll correction (OIS and EIS)
HDR and gamma: HLG/BT.2020 and SDR/BT.709; V-Log and V-709 selectable per output; HD, Normal, Cinema1, Cinema2 gamma
4K formats: 2160/60p, 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
HD formats: 1080/119.88p and 1080/100p high-speed (2x, via 3G-SDI OUT1/2 together), 1080/60p, 59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/59.94i, 50i, 720/59.94p, 50p
Video outputs: 12G-SDI x1 (BNC), 3G-SDI x2 (OUT1, OUT2/PM; BNC), HDMI 2.0 (4:2:2 10-bit), SFP+ optical fiber output (single fiber, MSA-compatible module, video only)
SMPTE ST 2110: Via SFP+ with optional AW-SFU60 software key: uncompressed HD output and JPEG XS compressed 4K/HD output; 3 video outputs (main, crop, monitor) plus 2 audio; 1 video return input; PTP ST 2059-2; NMOS IS-04/IS-05
IP streaming: NDI High Bandwidth and NDI HX2 included as standard; H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP; up to 3840x2160
Audio input: 2x XLR 3-pin (mic or line, 48 V phantom power); 48 kHz, 24-bit on SDI/HDMI
Sync: Genlock: BBS (black burst) or tri-level sync
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45); FreeD tracking data (IP/RS-422) for AR/VR; TSL 5.0; web browser GUI; USB 3.0 host for 5G mobile router tethering
Compatible controllers: AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ (IP); wireless remote AW-RM50AG (optional)
Other features: AI auto framing, crop output with crop zoom, waveform display, horizontal level gauge, front and rear tally lamps with yellow tally support, privacy mode
Pan/tilt: Pan ±175°, tilt -30° to 210°; speed 0.08°/s to 60°/s (Normal), max 90°/s (Fast1) and 180°/s (Fast2)
Noise: NC35 or less (NC25 or less when stationary)
Installation: Desktop or ceiling (hanging) mount
Power: 12 V DC (10.8 V to 13.2 V) via XLR, 5.0 A; or PoE++ (IEEE 802.3bt, 42 V to 57 V), 1.5 A
Dimensions (W x H x D): 213 x 277 x 240 mm (8-3/8 x 10-29/32 x 9-7/16 in), excluding protrusions and ceiling mount bracket
Weight: Approx. 4.6 kg (10.1 lb), excluding mount bracket
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-UE160 camera body (pearl white), ceiling mount bracket, cable cover, safety wire with screw
