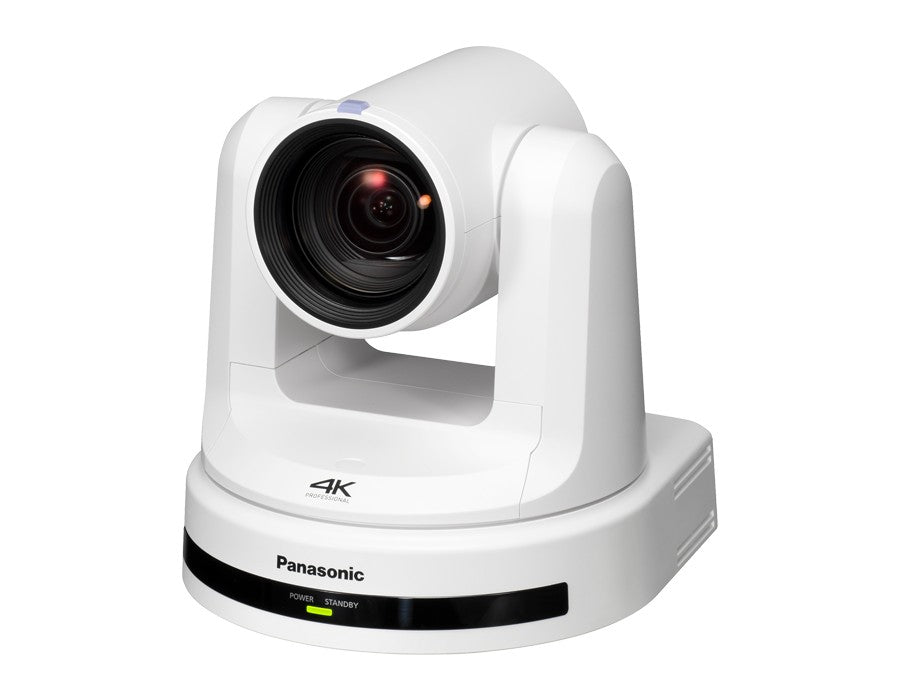

Panasonic AW-UE20WP is the white North American model of the AW-UE20 compact 4K PTZ camera for classrooms, meeting rooms and online events. It combines a 1/2.8-type 4K sensor and 12x optical zoom with a 71 degree wide angle, 4K/30p HDMI, 3G-SDI, IP streaming with RTMP and a USB webcam output, plus RS-232C and RS-422 control, Zoom Rooms certification and PoE plus power.
Configuration: AW-UE20WP
Region: North American model (Panasonic North America lists AW-UE20WP)
Camera: AW-UE20
Type: 4K integrated PTZ camera (pan-tilt head, lens and camera in one unit)
Sensor: 1/2.8-type 4K MOS, approx. 8.46 million effective pixels
Lens: Motorized optical 12x zoom, F1.6 to F2.8, f=3.9 mm to 46.8 mm (35 mm equivalent: 26.4 mm to 316.4 mm)
Zoom: Optical 12x; i.Zoom 1.33x (UHD and FHD); digital extender 1.4x, 2x; digital zoom 2x, 3x, 4x
Angle of view: Horizontal 71.0° (wide) to 6.0° (tele); vertical 43.0° to 3.0°; diagonal 79.0° to 7.0°
Minimum illumination: 0.4 lx (50 IRE, 42 dB, 1/30 shutter, F1.6)
Horizontal resolution: 1,400 TV lines (UHD), 1,000 TV lines (FHD) (center)
Gain: Auto, 0 dB to 42 dB (3 dB steps); frame mix up to 24 dB
4K formats: 2160/30p, 29.97p, 25p (HDMI)
HD formats: 1080/60p, 59.94p, 50p, 30p, 29.97p, 25p, 1080/60i, 59.94i, 50i, 720/60p, 59.94p, 50p (SDI and HDMI)
Video outputs: 3G-SDI x1 (BNC, Level-A, no embedded audio), HDMI (4:4:4 8-bit)
IP streaming: MJPEG (HTTP), H.264 (RTSP, RTMP, RTMPS), H.265 (RTSP); up to 3840x2160 at 30 fps
USB: Type-C, UVC 1.1 web camera output (YUV, MJPEG, H.264, up to 3840x2160) and UAC 1.0 audio
Audio input: 3.5 mm stereo mini jack (mic or line); 48 kHz, 16-bit
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45), RS-232C (Mini DIN 8-pin in/out); web browser GUI; Zoom Rooms certified
Compatible controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG wireless remote
Pan/tilt: Pan ±170°, tilt -30° to 90°; manual speed 0.1°/s to 100°/s, preset speed up to 200°/s (tilt up to 140°/s)
Noise: NC40 or less (60°/s or less), NC55 or less (100°/s or less)
Installation: Desktop or suspended (hanging), secured with the supplied mount bracket
Power: 12 V DC (10.8 V to 13.2 V) via supplied AC adaptor, 1.3 A; or PoE+ (IEEE 802.3at, 42.5 V to 57 V), 0.4 A
Dimensions (W x H x D): 165.1 x 176.2 x 176.1 mm (6.5 x 6.94 x 6.93 in), excluding protrusions, cable cover and mount bracket
Weight: Approx. 1.9 kg (4.19 lb), excluding ceiling mount bracket
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-UE20 camera (white), AC adaptor, mount bracket
