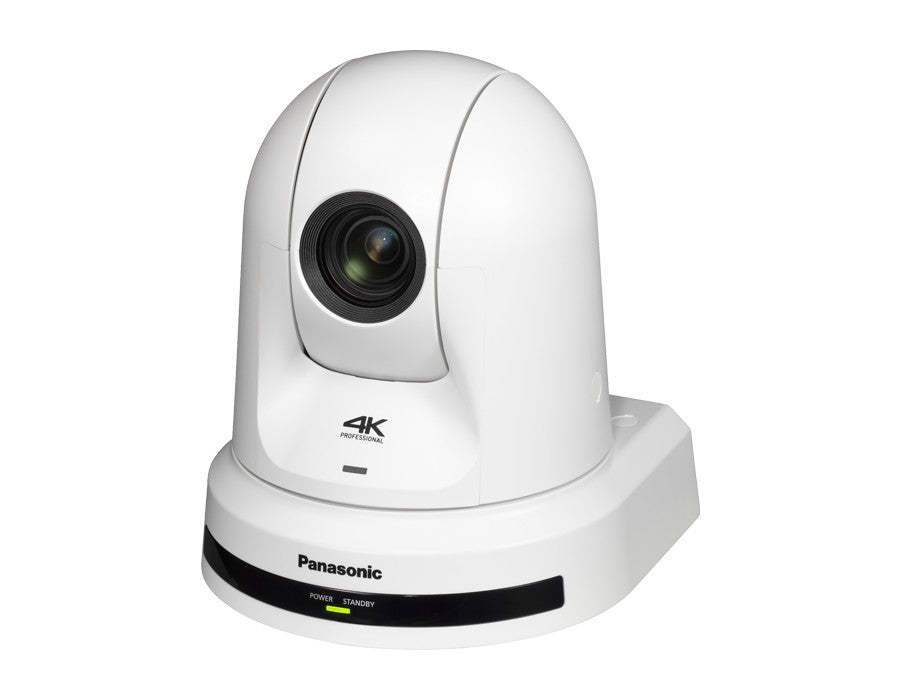

Panasonic AW-UE40WPJ5 is the white North American model of the AW-UE40 compact 4K PTZ camera for classrooms, lecture halls, meeting rooms and streaming. It pairs a 24x optical zoom and 74.1 degree wide angle with built-in auto tracking, OIS and a quiet NC25 head, plus 4K/30p HDMI, USB webcam output, NDI HX2, SRT and PoE plus power, without SDI. The listing describes this build as made in Japan.
Configuration: AW-UE40WPJ5
Region: North American model (Panasonic North America lists AW-UE40WPJ5)
Origin: Made in Japan (per Panasonic North America configuration listing)
Auto tracking: Built-in auto tracking, standard on AW-UE40
Camera: AW-UE40
Type: 4K integrated PTZ camera, compact dome design
Sensor: 1/2.5-type 4K MOS, approx. 8.49 million effective pixels
Lens: Motorized optical 24x zoom, F1.8 to F4.0, f=4.12 mm to 98.9 mm (35 mm equivalent: 25.0 mm to 600.0 mm)
Zoom: Optical 24x; i.Zoom UHD 28x, FHD 36x; digital extender 1.4x, 2x
Angle of view: Horizontal 74.1° (wide) to 3.3° (tele); vertical 46.0° to 1.9°; diagonal 81.8° to 3.8°
Optical filter: Not equipped
Focus: Auto/manual; minimum focus distance 1200 mm (3.9 ft) full zoom range, 100 mm (0.33 ft) at wide end
Minimum illumination: 3 lx (F1.8, 59.94p, 50 IRE, 42 dB)
Horizontal resolution: 1,500 TV lines (UHD), 1,000 TV lines (FHD) (center)
Gain: Auto, 0 dB to 36 dB (1 dB steps), Super Gain 37 dB to 42 dB; frame mix up to 24 dB
Image stabilization: Optical Image Stabilizer (OIS)
Gamma: HD, Normal, Cinema1, Cinema2, Still Like
4K formats: 2160/29.97p, 25p, 24p, 23.98p (HDMI)
HD formats: 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/59.94i, 50i, 720/59.94p, 50p
Video outputs: HDMI 1.4 (4:2:2 10-bit, up to 4K/30p); USB 2.0 Type-C (UVC); no SDI output
IP streaming: NDI HX2 (HD; depending on time of purchase an upgrade may be required); H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT; up to 1920x1080
Audio input: 3.5 mm stereo mini jack (mic or line); 48 kHz
Input connectors: DC 12 V IN (no genlock input)
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45), USB (UVC); web browser GUI; Zoom Rooms certified; compatible with the KAIROS IT/IP platform
Compatible controllers: AW-RP150GJ, AW-RP60GJ (IP); AW-RM50AG wireless remote; AK-HRP1000, AK-HRP1005, AK-HRP1015 and AK-HRP250 listed by Panasonic as to be supported in the future
Other features: Built-in auto tracking, New Direct Drive pan/tilt motor, privacy mode (lens faces backward on standby), tally LED limit
Pan/tilt: Pan ±175°, tilt -30° to 90°; speed 0.08°/s to 60°/s (Normal), max 90°/s (Fast1) and 180°/s (Fast2)
Installation: Desktop or suspended (hanging), secured with the supplied mount bracket
Power: 12 V DC (10.8 V to 13.2 V) via supplied AC adaptor, 1.8 A; or PoE+ (IEEE 802.3at, 42 V to 57 V), 0.6 A
Dimensions (W x H x D): 160.0 x 192.1 x 166.0 mm (6.299 x 7.563 x 6.535 in), excluding protrusions and ceiling mount bracket
Weight: Approx. 1.8 kg (3.97 lb) excluding ceiling mount bracket; approx. 2.05 kg (4.52 lb) with bracket
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-UE40 camera (white), AC adaptor, ceiling mount bracket
