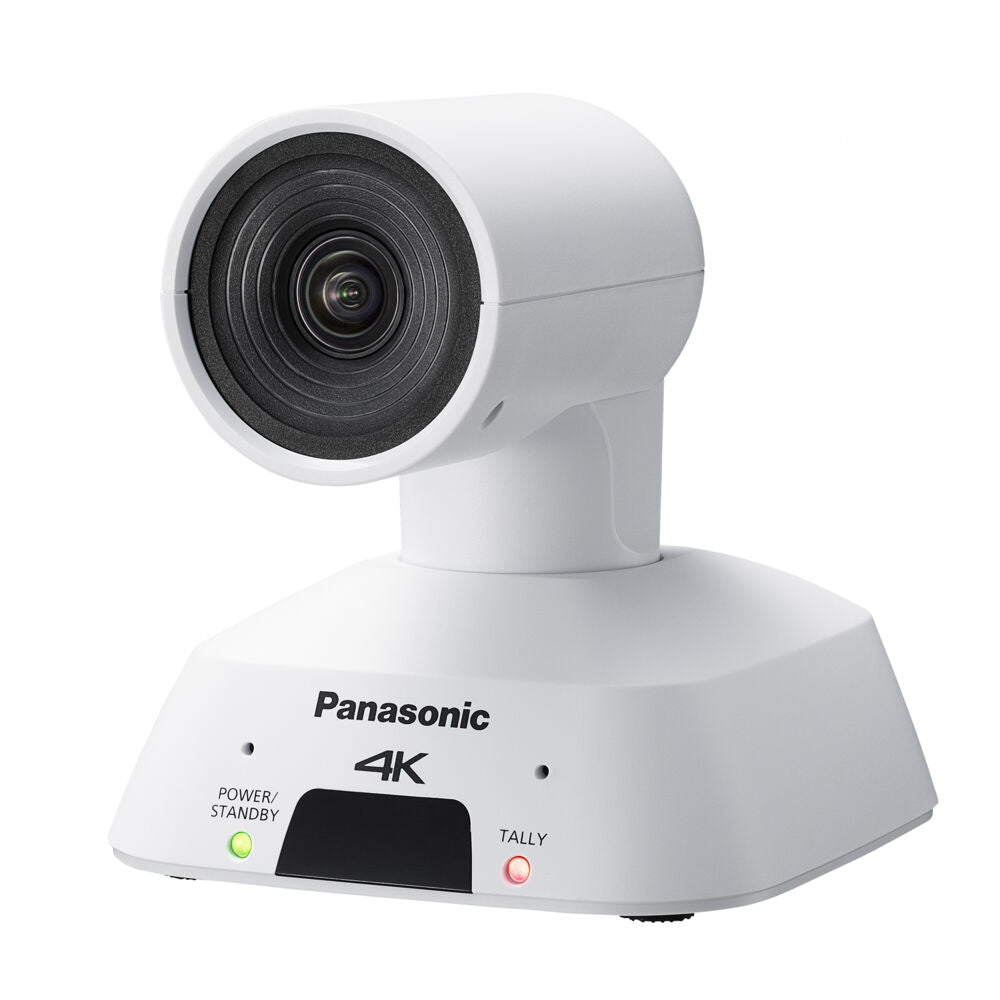

Panasonic AW-UE4WG 4K PTZ Camera

The AW-UE4WG/KG PTZ Camera supports 4K 30p/29.97p/25p video output.
Equipped with an ultra-wide-angle lens with a 111° field of view to capture every part of even the largest spaces and transmit wide-angle video in limited installation space.
The unit supports PoE supply as well as used as a USB camera that can be powered from a computer, realizing a single cable solution for video transmission, camera control and power supply.
Furthermore, the unit boasts high-performance operability through RTMP (Real-Time Messaging Protocol) compatibility for direct upload of video to live-streaming services, and is also excellent for live production. The camera handles both large and small spaces thanks to 4K high image quality and wide-angle video output that's perfect for recording everything from lectures and meetings to e-Sports production.

Dimensions (W × H × D): 123 mm × 131 mm × 139 mm (approx. 4-53/64" × 5-5/32" × 5-29/64")

Weight: Approx. 0.5 kg (1.1 lb) (excluding mount bracket)

Power Requirements:

• DC 5 V ±5 % (4.75 V to 5.25 V)

• PoE (IEEE802.3at) DC 37 V to 57 V

Imaging Sensor: 1/2.5-type MOS sensor

Lens: Ultra-wide lens (F2.4, f=2.21 mm / 35 mm eq. 13.4 mm)

Field of View: Horizontal ~111° (LDC off)

Zoom: 4× Digital Zoom (pan/tilt functions via digital methods)

Focus: Single focus (fixed)

Minimum Illumination: 4 lx (50 IRE, gain 42 dB, 1/60 shutter)

Horizontal Resolution:

• ~1,400 TV lines (4K HDMI output)

• ~900 TV lines (HD HDMI output)

Resolution Support:

• 4K UHD: 2160/30p, 2160/29.97p, 2160/25p

• HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/30p, etc.

• HD (720): 720/60p, 720/59.94p, 720/50p

Outputs:

• HDMI (4K/30p capable)

• USB (UVC support and certified for video conferencing/Zoom Rooms)

• LAN (IP streaming & control)

Power over Ethernet (PoE): Yes (IEEE802.3at)

USB Power/Operation Support: Yes (USB 5 V)

IP Streaming & Control: Supported via LAN connection

Web/Simple Control: Web browser interface available for presets and setup
