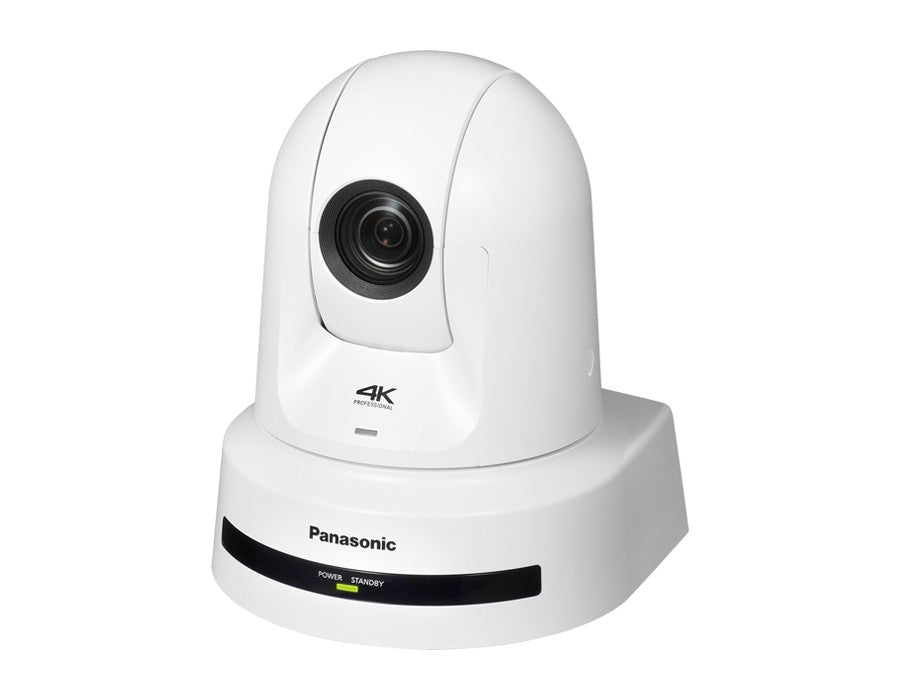

Panasonic AW-UE80WPJ5 is the white North American model of the AW-UE80 compact dome 4K PTZ camera for events, theatres, worship and broadcast. It offers a 1/2.5-type 4K sensor, 24x optical zoom with a 74.1 degree wide angle, OIS, built-in auto tracking and a quiet NC25 Direct Drive head, with 4K/60p HDMI, 3G-SDI, full NDI and NDI HX2, SRT, genlock, FreeD and IEEE 802.3bt PoE. The listing describes this build as made in Japan.
Configuration: AW-UE80WPJ5
Region: North American model (Panasonic North America lists AW-UE80WPJ5)
Origin: Made in Japan (per Panasonic North America configuration listing)
Auto tracking: Built-in auto tracking, standard on AW-UE80
Camera: AW-UE80
Type: 4K integrated PTZ camera, compact dome design
Sensor: 1/2.5-type 4K MOS, approx. 8.49 million effective pixels
Lens: Motorized optical 24x zoom, F1.8 to F4.0, f=4.12 mm to 98.9 mm (35 mm equivalent: 25.0 mm to 600.0 mm)
Zoom: Optical 24x; i.Zoom UHD 28x, FHD 36x; digital extender 1.4x, 2x
Angle of view: Horizontal 74.1° (wide) to 3.3° (tele); vertical 46.0° to 1.9°; diagonal 81.8° to 3.8°
Optical filter: Through, 1/4, 1/16, 1/64 ND, IR through (used as night mode)
Focus: Auto/manual; minimum focus distance 1200 mm (3.9 ft) full zoom range, 100 mm (0.33 ft) at wide end
Minimum illumination: 3 lx (F1.8, 59.94p, 50 IRE, 42 dB)
Horizontal resolution: 1,500 TV lines (UHD), 1,000 TV lines (FHD) (center, wide)
Gain: Auto, 0 dB to 36 dB (1 dB steps), Super Gain 37 dB to 42 dB; frame mix up to 24 dB
Image stabilization: OIS 2-axis (Off, O.I.S. STABLE, O.I.S. PAN/TILT)
Gamma: HD, Normal, Cinema1, Cinema2, Still Like
4K formats: 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p (HDMI)
HD formats: 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/29.97PsF, 25PsF, 23.98PsF (SDI), 1080/59.94i, 50i, 720/59.94p, 50p
Video outputs: 3G-SDI x1 (BNC, HD), HDMI 2.0 (4:2:2 10-bit, up to 4K/60p)
IP streaming: NDI High Bandwidth (up to 250 Mbps) and NDI HX2 included as standard (HD); H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP; up to 1920x1080
Audio input: 3.5 mm stereo mini jack (mic or line); 48 kHz, 24-bit on SDI/HDMI
Sync: Genlock: BBS (black burst) or tri-level sync (BNC)
Control: IP (LAN RJ-45, 100BASE-TX/1000BASE-T), RS-422 (RJ-45); FreeD tracking data (IP/RS-422) for AR/VR; TSL 5.0; web browser GUI; compatible with the KAIROS IT/IP platform
Compatible controllers: AW-RP150GJ, AW-RP60GJ (IP); AW-RM50AG wireless remote; AK-HRP1000, AK-HRP1005, AK-HRP1015 and AK-HRP250 listed by Panasonic as to be supported in the future
Other features: Built-in auto tracking, New Direct Drive pan/tilt motor, privacy mode (lens faces backward on standby), tally LED limit, F-number display on AW-RP150GJ and AW-RP60GJ
Pan/tilt: Pan ±175°, tilt -30° to 90°; speed 0.08°/s to 60°/s (Normal), max 90°/s (Fast1) and 180°/s (Fast2)
Installation: Desktop or suspended (hanging), secured with the supplied mount bracket
Power: 12 V DC (10.8 V to 13.2 V) via supplied AC adaptor, 3.0 A; or PoE++ (IEEE 802.3bt, 42 V to 57 V), 1.0 A
Dimensions (W x H x D): 170.0 x 211.0 x 171.0 mm (6.693 x 8.307 x 6.732 in)
Weight: Approx. 2.0 kg (4.41 lb) excluding ceiling mount bracket; approx. 2.25 kg (4.96 lb) with bracket
Operating environment: 0 to 40 °C (32 to 104 °F), 20% to 90% humidity (non-condensing)
AW-UE80 camera (white), AC adaptor, twist-lock ceiling mount bracket, safety cable
