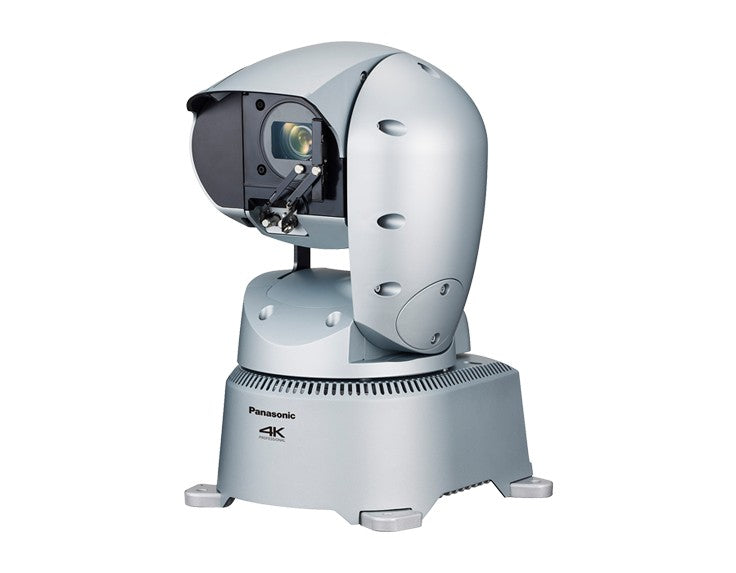

Panasonic AW-UR100GJ5 is an IP65 outdoor 4K/60p PTZ camera for sports venues, coastal facilities, ships and weather cameras. It pairs a 24x optical zoom with a 74.1 degree wide angle, OIS, EIS and D.I.S.S. stabilization against wind sway, a built-in wiper, heater and defroster rated to -15 C, and 12G-SDI, fiber, NDI, SRT and FreeD outputs. This is the North American model.
Configuration: AW-UR100GJ5
Region: North American model
Finish: Silver, salt-resistant coating
Camera: AW-UR100
Type: Outdoor 4K integrated PTZ camera, IP65 waterproof and dustproof
Sensor: 1/2.5-type 4K MOS, approx. 8.29 million effective pixels
Lens: Motorized optical 24x zoom, F1.8 to F4.0, f=4.12 mm to 98.9 mm (35 mm equivalent: 25.0 mm to 600.0 mm)
Zoom: Optical 24x; i.Zoom UHD 28x, FHD 36x; digital extender 1.4x, 2x; digital zoom 10x
Angle of view: Horizontal 74.1° (wide) to 3.3° (tele); vertical 46.0° to 1.9°; diagonal 81.8° to 3.8°
Optical filter: Through, 1/4, 1/16, 1/64 ND, IR through (night mode)
Focus: Auto/manual; minimum focus distance 1200 mm (3.9 ft) full zoom range, 100 mm (0.33 ft) at wide end
Minimum illumination: 3 lx (F1.8, 59.94p, 50 IRE, 42 dB)
Horizontal resolution: 1,500 TV lines (center, UHD mode, wide)
Gain: Auto, 0 dB to 36 dB (1 dB steps), Super Gain 37 dB to 42 dB
Image stabilization: OIS 2-axis plus hybrid roll correction (OIS and EIS) and D.I.S.S. (Dynamic Image Stabilizing System) pan/tilt correction
Gamma: HD, Normal, Cinema1, Cinema2, Still Like
4K formats: 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p
HD formats: 1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/59.94i, 50i, PsF modes, 720/59.94p, 50p
Video outputs: 12G-SDI x1 (BNC), 3G-SDI x1 (BNC), SFP+ optical fiber output (single fiber, MSA-compatible module, same signal as 12G-SDI)
IP streaming: NDI High Bandwidth and NDI HX2 included as standard; H.264, H.265, MJPEG; RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP; up to 3840x2160
Audio input: 2-channel balanced mic/line via D-sub 9-pin (48 V phantom power); 48 kHz, 24-bit on SDI
Sync: Genlock: BBS (black burst) or tri-level sync
Control: IP (LAN RJ-45), RS-422 (RJ-45); FreeD tracking data for AR/VR; TSL 5.0; web browser GUI; washer control output (D-sub 9-pin) for an external washer unit
Compatible controllers: AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ
Other features: Crop output (up to 3 positions) with crop zoom, privacy mode
Weather protection: IP65; wiper, heater and defroster installed as standard; silver salt-resistant coating; operates normally in winds up to 15 m/s, no damage up to 60 m/s
Pan/tilt: Pan ±175°, tilt -30° to 210°; speed 0.08°/s to 60°/s (Normal), max 90°/s (Fast1) and 180°/s (Fast2)
Installation: Desktop or suspended (hanging)
Power: 12 V to 21.8 V DC (10.8 V to 24.0 V), 3.1 A to 5.5 A; or PoE++ (IEEE 802.3bt, 42 V to 57 V), 1.2 A
Dimensions (W x H x D): 258 x 367 x 392 mm (10.16 x 14.45 x 15.43 in), including protrusions and cable cover
Weight: Approx. 9.0 kg (19.8 lb)
Operating environment: -15 to 45 °C (5 to 113 °F), preheating required below -5 °C; 10% to 100% humidity
