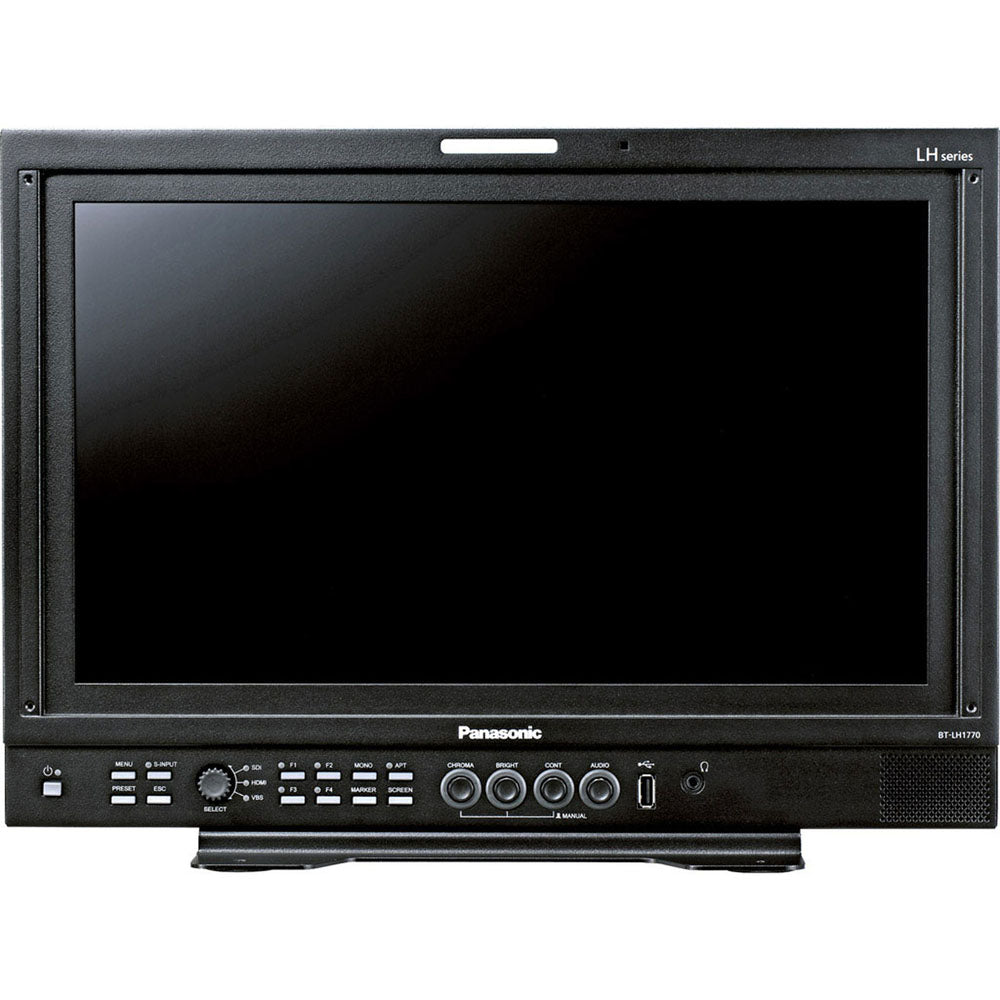

Panasonic BT-LH1770P 17" Full HD Production / Field Monitor

Featuring a high-quality Full-HD/10-bit LCD panel and AC/DC power supply capability, the 420 mm (16.5 inches) LCD video monitor offering high versatility in field shooting, production monitor, and other shooting situations.

The Panasonic BT-LH1770 is a 420 mm (16.5 inches) LCD video monitor designed for video production and broadcasting applications. The monitor display is a Full-HD/10-bit LCD panel and delivers high image quality. It operates on AC/DC power and is mountable in a 19-inch rack. The new monitor uses an IPS LCD panel with a wide viewing angle, high brightness, high contrast ratio, superb motion-image response, and excellent color reproduction. Featuring Full-HD (1920 × 1080) resolution, input images are displayed without resizing. Faithful gradation is also achieved by 10-bit processing. Input terminals include 3G-SDI (x2), HDMI, and analog composite input to support a wide variety of sources. Various functions, including embedded audio and Waveform Monitor (WFM)/ Vectorscope (VS) display support broadcast operation. Versatility and easy operation are provided by functions such as user files for simple color matching across multiple monitors, and menu setting with a USB mouse. AC/DC/battery drive and 19-inch rack mounting (7U) meet the needs of field shooting and relay broadcasting, supporting a wide range of production and broadcasting applications.
