Panasonic MOD1AK-UCX100 is a Panasonic North America build of the AK-UCX100GSJ 4K HDR studio camera with a high powered 25G SFP installed. The camera pairs a 19.29-million-pixel MOS sensor and B4 mount with 2000 TV lines, HLG and SDR together, two 12G-SDI outputs, and CCU-less SMPTE ST 2110, NDI High Bandwidth and SRT over dual SFP28 slots.
Configuration: MOD1AK-UCX100
Base camera: AK-UCX100GSJ
Modification: High powered 25G SFP installed (per Panasonic North America configuration listing)
Camera: AK-UCX100GSJ
Image sensor: 19.29-million-pixel MOS sensor; oversampling for 2000 TV lines horizontal and vertical
Lens mount: 2/3-type bayonet (B4)
Optical filters: ND: Clear, 1/2, 1/4, 1/16, 1/64; FX: Clear, Clear (option slot), Cross, Diffusion, CAP; optional HD optical low-pass filter for the FX slot (paid option) reduces moire on LED walls
Sensitivity: Low Light mode F10 (59.94 Hz) / F11 (50 Hz); Normal mode F6 (59.94 Hz) / F7 (50 Hz) at 2000 lx, 3200 K, 89.9% reflectance
Horizontal resolution: 4K: 2000 TV lines or above (center); HD: 1000 TV lines or above (center)
Gain: -6 to 18 dB in 3 dB steps
Shutter: 1/48 to 1/2000 s depending on frame rate
System formats: 3840 x 2160 and 1920 x 1080 at 59.94p, 50p, 29.97p, 25p, 23.98p
High-speed: 4K 2x; HD 2x, 3x, 4x
HDR and color: HLG (ITU-R BT.2020) and SDR (BT.709) simultaneously
Video I/O: SDI OUT 1 and SDI OUT 2: BNC, 12G/6G/3G/1.5G-SDI; TRUNK IN: BNC, 3G/1.5G-SDI; G/L IN / REF OUT: BNC (tri-level sync or black burst in, reference out)
IP: Two SFP28 slots; SMPTE ST 2110 uncompressed 4K and JPEG XS; 4K redundant connections (dual SFP28, or BiDi SFP28 with AK-CFA100); Tagged VLAN for CCU-less operation; NDI High Bandwidth; SRT; TSL 5.0 tally; FreeD lens data; LAN TRUNK jumbo frames (MTU 9000)
CCU operation: Standalone camera head without a CCU, or with the AK-UCU700 / AK-UCU710 series CCU or AK-CFA100 Camera Fiber Adaptor via the optical composite connector (LEMO); uncompressed camera-to-CCU optical transmission up to approx. 2 km (1.2 mi) with the AK-UCU700 series
TRUNK: Two 3G-SDI lines (CCU/CFA to camera) and one 3G-SDI line (camera to CCU/CFA), each with frame synchronizer; one 1000BASE-T LAN line
Focus: High-precision focus indicator and image-plane phase-detection focus guide; VF Shadow Boost; built-in phase detection autofocus (PDAF) with selectable area size and position, added by firmware update
LED color adjustment: Color Temp. Blend, Target Color Correction (up to three color tables) and Chroma Suppression, scheduled via firmware update (November 2026)
Other functions: Low-skew scan mode, remote back focus adjustment, F-drop and vignetting compensation; shares the ROP with Panasonic 4K PTZ cameras for color matching
Audio and intercom: MIC 1 and MIC 2: XLR 3-pin (line/mic/48 V phantom switchable); front MIC: XLR 3-pin; Intercom 1 and 2: XLR 5-pin; earphone: stereo mini jack
Other connectors: Lens 12-pin; VF 20-pin and rear VF 29-pin; DC IN XLR 4-pin (12 V); DC OUT 12 V 1 A (4-pin) and 12 V 2.5 A (2-pin); RET CTRL 6-pin; EXT I/O 20-pin; Remote 10-pin; LAN RJ-45; USB-C host (USB Power Delivery, future update); build-up 20-pin
Camera control: Remote Operation Panels AK-HRP1010GJ, AK-HRP1015GJ; Master Setup Unit AK-MSU1000GJ
Power: DC 12 V (external supply) or AC 240 V, 50/60 Hz when connected to an AK-UCU710 / AK-UCU700 series CCU or AK-CFA100
Power consumption: 119 W maximum (external 12 V, including connected devices); 360 W maximum with CCU or AK-CFA100 connected
Operating environment: -10 to 45 C (14 to 113 F), preheating required at 0 C (32 F) or below; humidity 85% or less
Storage temperature: -20 to 60 C (-4 to 140 F)
Dimensions (W x H x D): 157 x 267 x 371.5 mm (6-3/16 x 10-17/32 x 14-21/32 in), body only, excluding protrusions
Weight: Approx. 4.55 kg (10.03 lb), body only

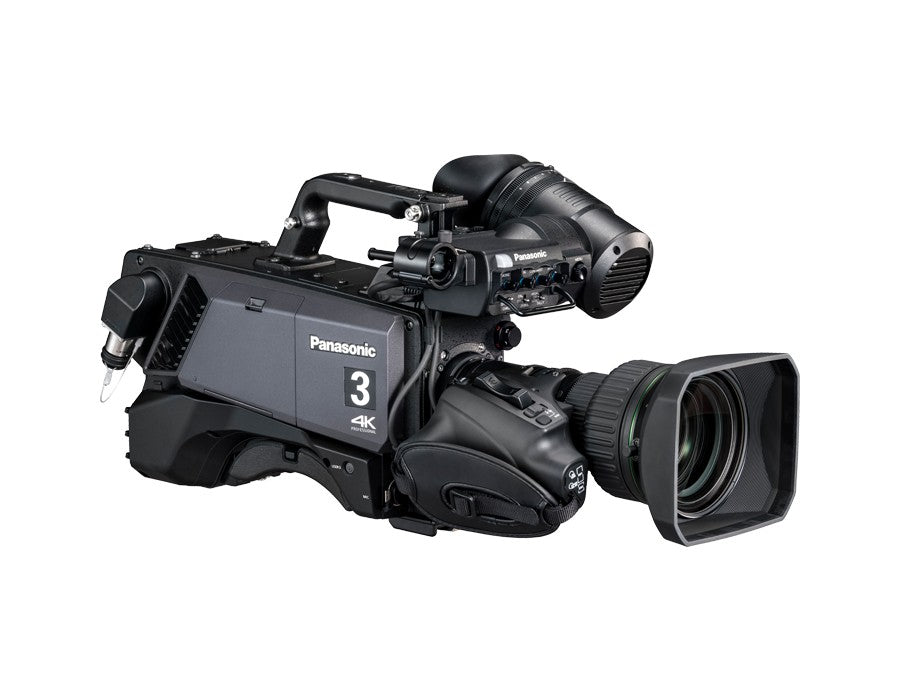

AK-UCX100GSJ camera with high powered 25G SFP installed (per Panasonic North America configuration listing)
