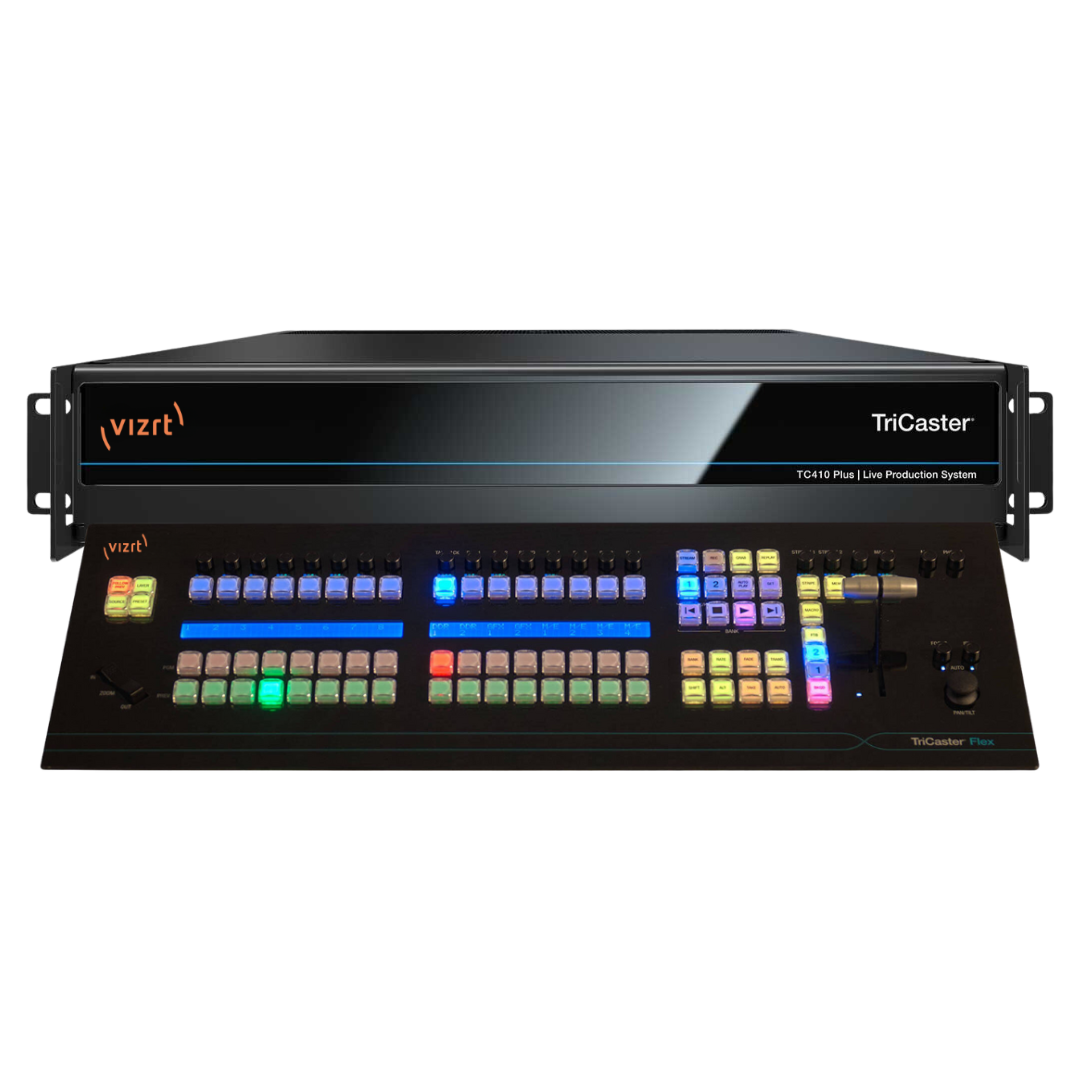

- Brand Vizrt
- SKU VIZ-TC410PFLEX
- MPN TC410PFLEX
Description
Tech Specs
Brand Details
16 simultaneous external video inputs
• Supports mixed format sources up to UHD 4K 60 fps (2160p 59.94)
Network Video Inputs (NDI®): Up to 16 IP video inputs with key & fill support
SDI Video Inputs:
• 4 × 3G/HD/SD-SDI
• Standard formats supported include:
– 1080p @ 60/59.94/50/29.97/25
– 1080i @ 59.94/50
– 720p @ 59.94/50/29.97/25
– 576i @ 50 / 480i @ 59.94
M/E Buses: 4 mix/effect (M/E) buses with video re-entry capabilities
Keyers:
• 16 × input keyers
• 4 × media player keyers
• 4 × M/E keyers
• 4 × DSK (Downstream Keyers)
Memory/Presets:
• 9 memory slots per M/E bus + PREVIZ
Network Video Outputs:
• Up to 4 independent NDI output mixes (HD)
• 1 × UHD 4K mix output (NDI) option
SDI Video Outputs:
• 4 × 3G/HD/SD-SDI configurable as mix outputs or quad-link for 4K
Mixed Output Configurations: Both SDI and IP outputs can be active concurrently
Media Players: 5 total players (combining DDR, GFX, and Sound roles)
Media Buffers: 15 buffers (10 animation + 5 graphics)
Clip Players: 30 clip slots for transitions or playback
Virtual Sets & Compositing:
• Integrated LiveSet™ virtual sets with a library of ready-to-use sets
• LiveMatte™ chroma & luma keying on source and M/E buses
Integrated DSP Mixer with flexible routing (e.g., 4×4×4 audio matrix)
Audio I/O:
• Embedded SDI audio from video sources
• Balanced line-level I/O (XLR / 1/4″) for analog sources
• NDI network audio native support
• Optional Dante™ / AES67 network audio support
PTZ Camera Support: Up to 8 simultaneous PTZ cameras via serial (RS-232/RS-422) or IP control
Network Interfaces: Multiple Gigabit NICs for NDI® and network traffic
Genlock / Sync: Supported for SD/HD external reference
GPI / MIDI I/O: For external control signals and automation triggers
USB Connectivity: USB 3.x ports for peripherals, storage devices, and third-party hardware
