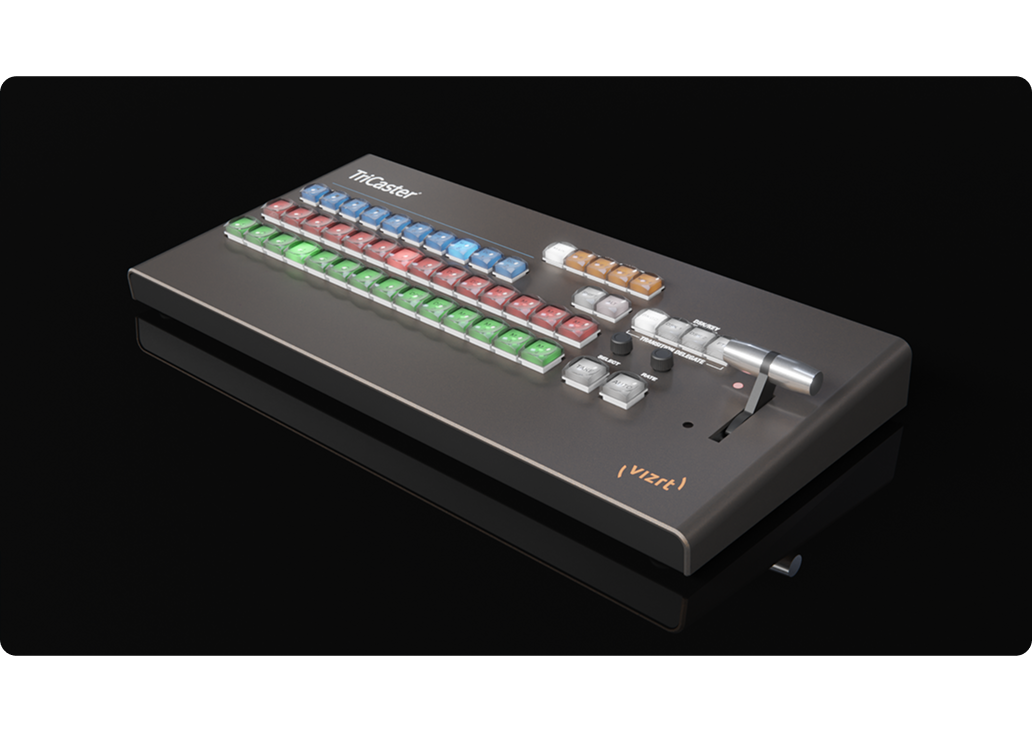

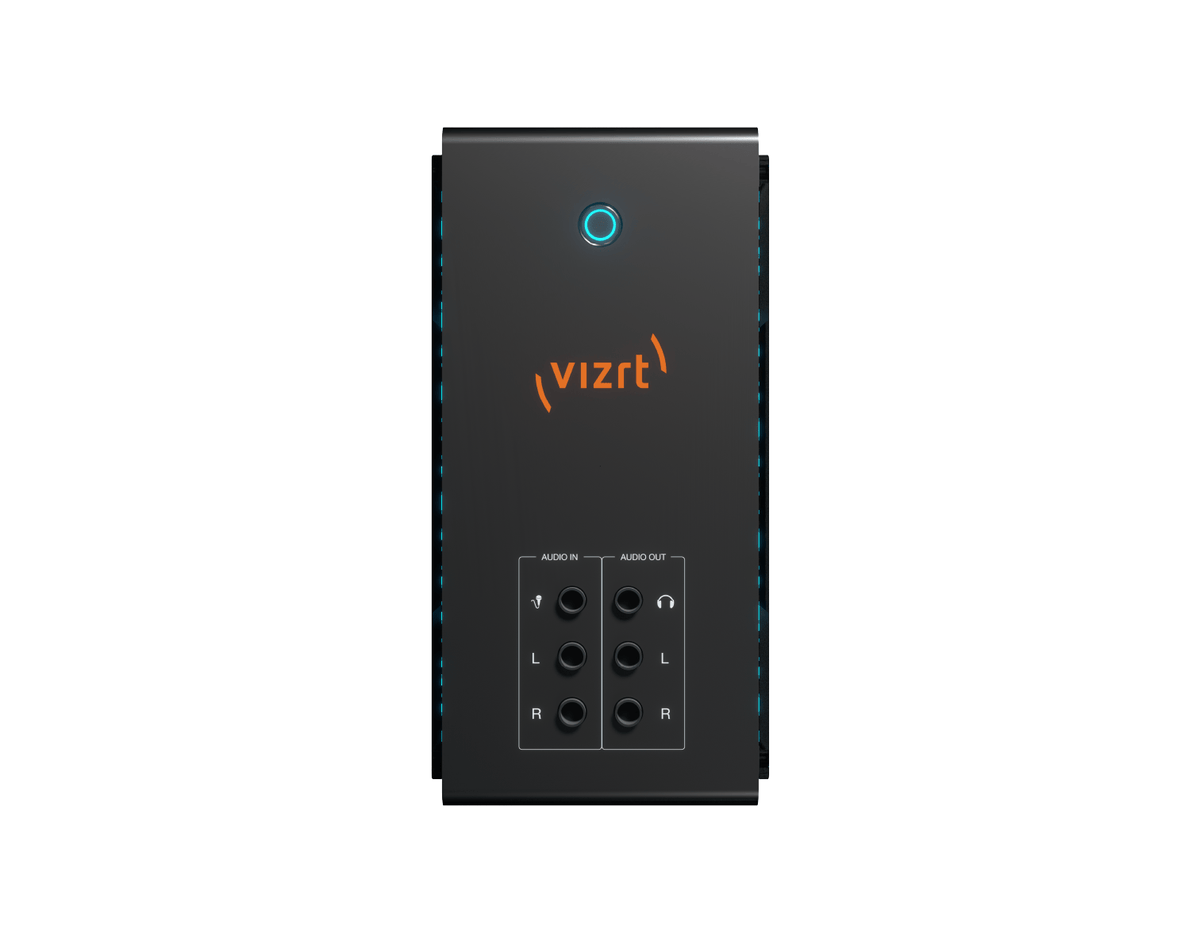

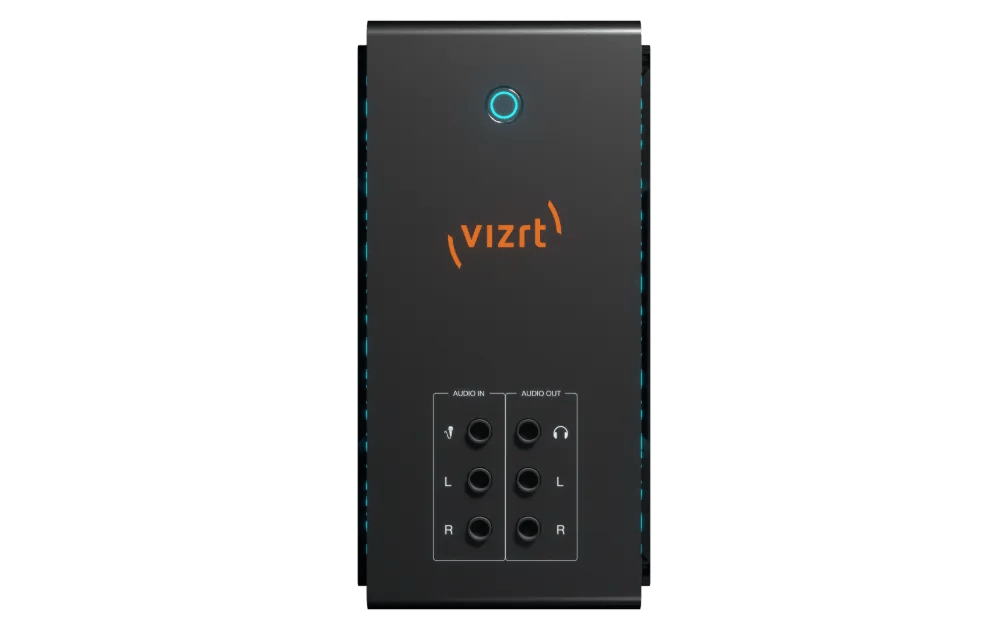

The TriCaster Mini X HDMI Bundle pairs the TriCaster Mini X HDMI with the TriCaster Mini Control Panel and a custom TriCaster Mini travel case, for a complete portable production kit.
TriCaster Mini X Specifications
| Inputs |
8 (IP via NDI, HDMI, USB) |
| Output mixes |
4 |
| M/E count / layers / keys |
4 / 2 / 2 |
| DSK |
2 |
| Record channels |
4 |
| Max session resolution |
2160p/30 |
| Supported displays |
4 |
Network Video Input
- 8 x total IP video inputs via NDI®, resolution-independent
- NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
- 2160p 59.94, 50, 29.97, 25
- 1080p: 59.94, 50, 29.97, 25
- 1080i: 59.94, 50
- 720p: 59.94, 50, 29.97, 25
- SD: 59.94, 50, 25
- 1Available frame rates determined by session video standard (NTSC or PAL)
PTZ
- Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system. Control connections will vary based on hardware
Skype TX
- Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output
- IP video output via NDI, optionally configurable for:
- 4 x independent video mix outputs
- 1 x UHD video mix output
Stream Output
- 2 x resolution-independent streaming video outputs, independently configurable and controllable, with simultaneous stream archive
Monitor Outputs
- UI and multiview outputs available via onboard GPU outputs
Mix/Effect Buses (M/E)
- 4 x M/E buses supporting video re-entry
- 1 x Mix/Effect channel per bus with support for up to 2 sources
- 4x channels NDI|HX 2 in HD H.264 or HEVC codec
DSK Channels
Media
- 4 x media players
- 2 x DDR
- 1X GFX
- 1 x Sound
- 15 x media buffers
- 5 x animation buffers including GIF support
- 10 x graphic buffers
Keyers
- Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
- 8 x input keyers
- 2 x media player keyers
- 4 x M/E keyers
- 15 x buffer keyers
COMPs
- Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
- 16 x configurable COMP presets per bus
Virtual Set
- Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink
- Integrated DataLink™ technology enables real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII, and more
Macros
- Record, store, edit and automate commands and user-configured operation sequences
- Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
- Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
- Supports control via web-based interface
Recording
- 4 x recording channels from either NDI® inputs or Mix outputs
- Records and retains alpha channel data
- 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2
- 2QuickTime Player not required for playback in common NLE applications
Signal Monitoring
- Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Grab
- Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
- Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing
- Integrated multi-channel audio mixer with support for stereo audio, and DSPs
Network Audio
- Native support for network audio input and output via NDI®
- Embedded audio supported for all NDI® input and output video signals
- Integrated support3 for Dante™ networking protocol from Audinate®
- 3Requires Dante Virtual Soundcard license from Audinate (sold separately)
- 5Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
- Import, store, and playback multimedia files, with optional transcoding, including:
- Video | AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
- Image | PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
- Audio | AIFF, MP3, WAV, and more
Processing
- Video | YCbCr + Alpha color space, using 4:2:2:4 Audio: Floating Point, 96 kHz
Latency
- Processing Latency | ~1.0-1.5 frames
Tally
- Support for network tally via NDI®
MIDI
- Support for standard MIDI protocol enabling third-party device control
Viz Flowics Go Plan
- 2 Users
- 2GB Asset Library
- 1 Output
- 1 Team
- Graphics Editor
- Timeline-based Animations
- Text Crawler
- Assets Library
- 140 ready-to-use free graphics
- Data Integrations
- Google Sheets Data Provider
- RSS / Atom Data Provider
- JSON REST Connector
- JSON WebSocket Connector
- Security – MFA
- Control API
- Knowledge Base Support
- Powered by Viz Flowics running in cloud, rendered locally via TriCaster Live Link
Source: vizrt.com technical specifications, retrieved 2026-10-27. Subject to change without notice.
