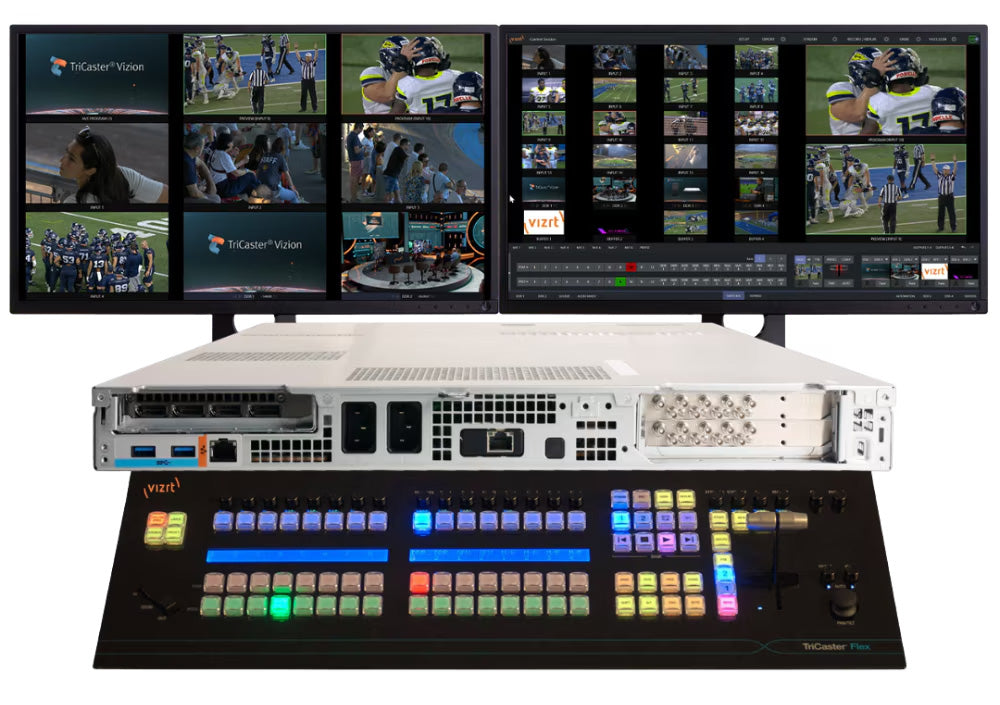

A high-performance production powerhouse designed for broadcasters, stadiums, and media publishers who require sophisticated, multi-camera capabilities. This limited-time promotional bundle combines the newest evolution of the TriCaster mixing tool with the versatile Flex Control Panel to offer an elite production workflow at a significant value.
44 simultaneous external video inputs — supports any mix of compatible sources up to UHD 2160p 60 fps.
Network Video Input: 44 × IP (NDI®), resolution-independent with key & fill support.
SDI Video Inputs: Up to 16 configurable SDI ports (configurable as input or output; up to 8 supporting 12G) with support for:
- 2160p @ 59.94 / 50 / 29.97 / 25
- 1080p @ 59.94 / 50 / 29.97 / 25
- 1080i @ 59.94 / 50
- 720p @ 59.94 / 29.97 / 25
Configurable video mix outputs:
- Up to 8 independent HD outputs, or
- Up to 2 UHD (4K) mix outputs simultaneously.
-
56 × IP outputs via NDI® (HD sessions).
44-channel integrated audio mixer with DSP.
Flexible routing: 4×8×8 audio input matrix.
- Integrated LiveMatte™ chroma and luma keying on all source/M/E buses.
-
44 input keyers, 4 media player keyers, 8 M/E keyers, 1 preview keyer.
-
16 configurable COMP presets per bus.
Virtual Sets: Integrated LiveSet™ technology with 30+ live virtual sets and box effects.
DataLink™: Real-time automated data input from spreadsheets, RSS, scoreboards, XML/JSON, etc.
Macros: Store and automate sequences tied to panels, keyboards, GPI, and events.
Media Players: 5 total (4 DDR + 1 sound).
-
Buffers: 15 media buffers including animation and graphic buffers.
-
Recording: Supports configurable M/E channels, DDR playback, and streaming encoders.
-
Storage: 4 TB SSD internal; external storage via USB (multiple Type-A & Type-C ports).
