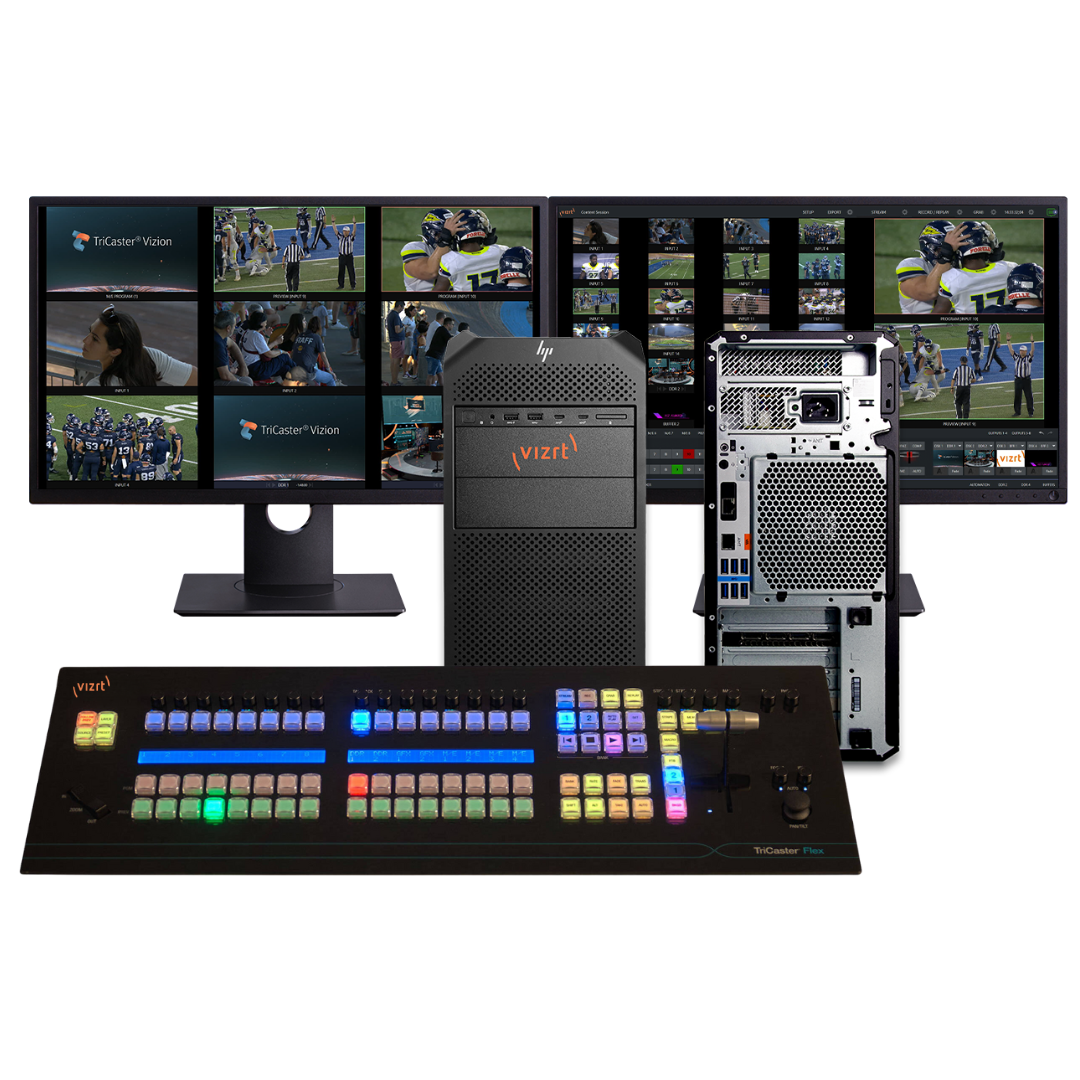

This bundle represents the pinnacle of live video production, combining the cutting-edge AI power of TriCaster Vizion with the versatile tactile control of the Flex Control Panel. Engineered for broadcasters, large stadiums, and media publishers, this bundle offers a complete flagship solution for sophisticated, multi-camera 4K productions.
44 simultaneous external video inputs for live sources, supporting ANY combination of compatible sources up to UHD 60 fps (2160p 59.94).
Network Video Inputs: 44 IP inputs via NDI®, resolution-independent with key & fill support.
SDI Video Inputs: 12G/3G/HD SDI connections supporting standard formats and frame rates:
• UHD 2160p @ 59.94 / 50 / 29.97 / 25
• 1080p @ 59.94 / 50 / 29.97 / 25
• 720p @ 59.94 / 29.97 / 25
- • 8 independent HD video mix outputs, or
- • 2 UHD video mix outputs (2160p 60 fps).
- Network Video Outputs:
- • Up to 56 IP outputs via NDI® (HD sessions).
- • Includes multiple direct source outputs, multiview, UI, and teleprompter outputs.
44-channel integrated audio mixer with DSP and flexible 4×8×8 routing.
Local Audio I/O: Embedded audio on SDI and network sources.
Network Audio: Native support via NDI®; optional Dante™ and AES67 support with third-party licenses.
Keyers: Integrated LiveMatte™ chroma and luma on all source channels and M/E buses (44 input keyers, 4 media player keyers, 8 M/E keyers).
Video Composition Engine: Configurable presets and 16 configurable COMP presets per bus.
Virtual Sets: LiveSet™ technology with 30+ live virtual sets.
Data Integration: DataLink™ technology for real-time data from spreadsheets, RSS feeds, and more.
Internal Storage: 4 TB SSD.
Network Interfaces: 1 × 10 GbE and 1 × 1 GbE NICs.
Genlock & Sync: Genlock input support for SD/HD reference signals.
GPI, MIDI Support: For expanded control and integration.
