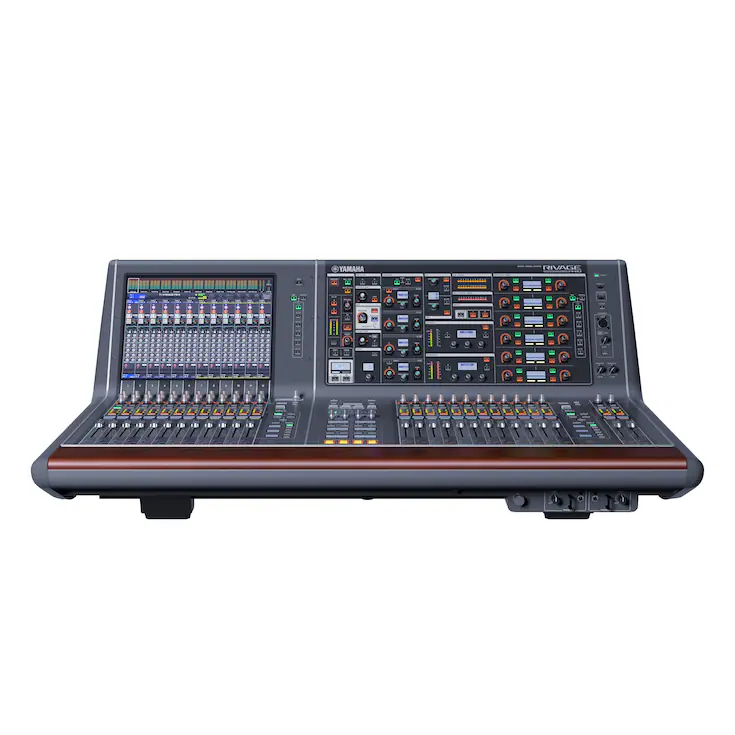

Yamaha RIVAGE CS-R10-S Compact 26‑fader control surface with one touch panel.

YAM-CSR10S The CS-R10-S is a more compact version of the CS-R10 with 26 faders (12+12+2) and one 15″ touch panel display. It is designed for the RIVAGE PM10 system and dual-console setups, maintaining high operational flexibility and reliability.

• Display: 15" touch panel x 1
• Faders: 26 (12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 1
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)
• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Power supply: dual redundant power supply built-in
• Power consumption: 380W
• Dimensions (WxHxD): 1,128 x 417 x 848mm (44.4" x 16.4" x 33.4")
• Net Weight: 67 kg (147.7 lbs)
