Yamaha DM3-D Compact Digital Mixer - 22-Channel with Dante, 96kHz

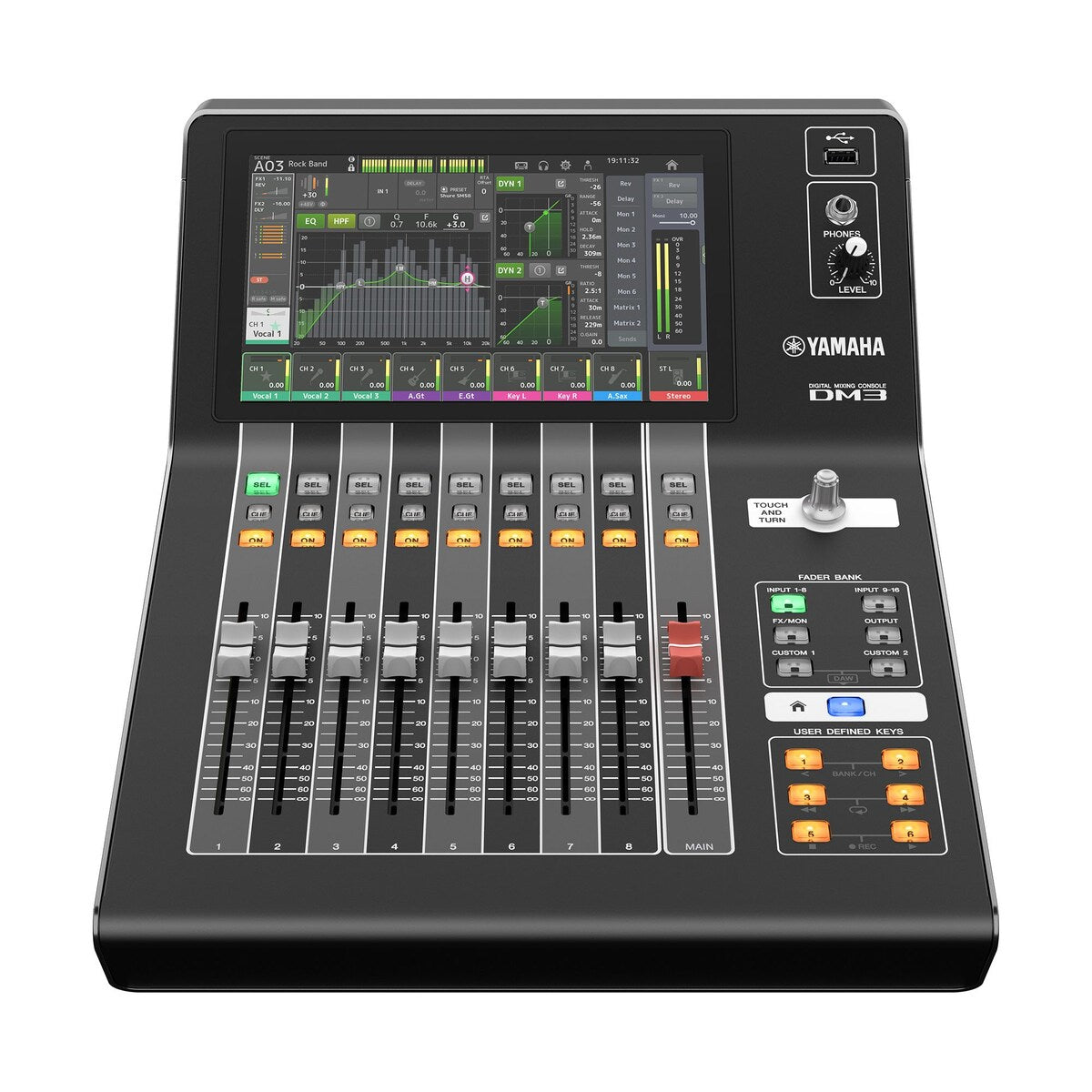

Yamaha DM3-D 22-Channel Digital Mixing Console with Dante

The DM3-D is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. It is the first compact console to be fully compatible with Dante, allowing faster and easier setup with multiple devices.

The DM3 Series shatters the idea that a compact console means compromise, offering superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production.

Built on Yamaha's philosophy of transparent, uncolored sound and capable of sampling rates up to 96 kHz, the DM3 Series is the ideal starting point for mixing, recording, live streaming, or installed applications.

A “less is more” design built around a 9″ multi-touch screen and a single Touch & Turn knob gives a user experience reminiscent of a smartphone, with a multi-language interface for users of every skill level. Take it to a gig, record and stream the show, then bring it home for editing as part of your DAW setup.

• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (supports Input to Matrix)
• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs and 8 XLR outputs
• Dante: 16 inputs and 16 outputs
• USB: 18 inputs and 18 outputs
• 18 effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48 kHz / 96 kHz
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Net weight: 14.3 lb

• Input Channels: 16 mono + 1 stereo + 2 FX return
• Mix Buses: 6
• Matrices: 2 (Supports Input to Matrix)
• Stereo Buses: 1
• FX Buses: 2
• Cue Buses: 1
• Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
• Analog Output: 8 (XLR)
• Dante: 2 (etherCON: Primary/Secondary); 16 inputs / 16 outputs
• Network: 1 (RJ-45)
• USB TO HOST: 1 (USB Type-B, USB 2.0)
• USB TO DEVICE: 1 (USB Type-A)
• Phones: 1 (TRS Phones)
• DC: 1 (XLR 4-pin, DC power in)
• User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
• Recording & Playback (PC/Mac): Recording 18 track, Playback 18 track
• Recording & Playback (USB storage): Recording 2 track, Playback 2 track (USB hard disk / SSD / flash memory)
• Sampling Frequency: 96 kHz / 48 kHz
• Signal Delay: Less than 1.3 ms (CH INPUT to OMNI OUT, Fs=96 kHz)
• Frequency Response: +0.5, -1.0 dB 20 Hz-20 kHz, INPUT to OMNI OUT
• Total Harmonic Distortion: Less than 0.01% 20 Hz-20 kHz @ +4 dBu into 10 kΩ, INPUT to OMNI OUT
• Equivalent Input Noise: -126 dBu typ., Input Gain = Max.
• Residual Output Noise: -84 dBu, ST main off
• Dynamic Range: 110 dB typ. (DA Converter), 106 dB typ. (INPUT to OMNI OUT)
• Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels @ 1 kHz
• Power Requirements: DC 24 V / 2.5 A, PA-L500 (100-240 V, 50/60 Hz)
• Power Consumption: 43 W
• Dimensions (W x H x D): 320 x 140 x 455 mm (12.6" x 5.6" x 18.0")
• Net Weight: 6.5 kg (14.3 lb)
• Included Accessories: Owner's Manual, Power Adapter, Download Information
• Optional Accessory: RK-DM3 rack mount kit
• Operating Temperature: 0 - 40 °C
• Storage Temperature: -20 - 60 °C
