Yamaha RIVAGE PM DSP-RX DSP Engine - 120 Inputs, 48 Mix Buses for RIVAGE Systems

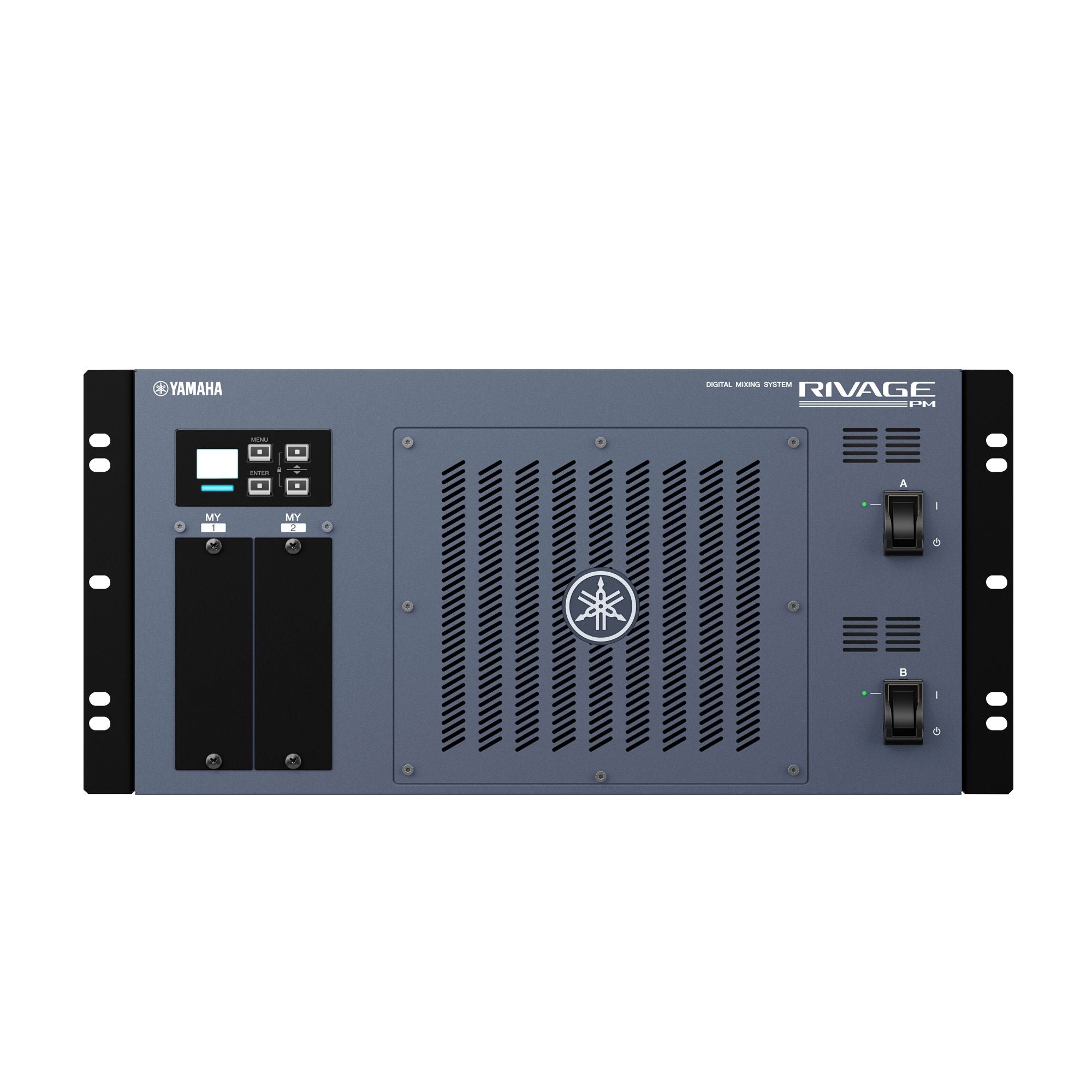

YAM-DSPRX The DSP-RX is the main DSP engine for RIVAGE PM series: up to 120 inputs, 48 mix buses, and 24 matrix channels. Built-in dual redundant power supply and designed for expansion to DSP-RX-EX via upgrade kit.

Max Input Channels: Supports up to 120 input channels.

Mix Buses: Up to 48 Mix Buses.

Matrix Channels: 24 matrices (Input-to-Matrix supported).

Stereo Channels: 2 stereo buses.

HY Card Slots: 4 × HY card slots (each up to 256 in/out per slot).

Mini-YGDAI/MY Card Slots: 2 slots for additional interface formats (varies by config).

Power Consumption: ~190W (typical).

Dimensions (Approx): ~480 mm (W) × 220 mm (H) × 491 mm (D) (5U rack size).

Net Weight: ~19 kg (≈41.9 lbs).

Network / Control I/O:

• • Console Network (TO CONSOLE): 2 × etherCON CAT5e.
  • WORD CLOCK: In/Out (BNC).
  • Ethernet / Network Ports: PC & network connectivity.
  • MIDI In/Out: 5-pin DIN.
  • TC In: XLR-3-31 Type.
  • GPI / Remote / Fault: Standard connectors for external control.
