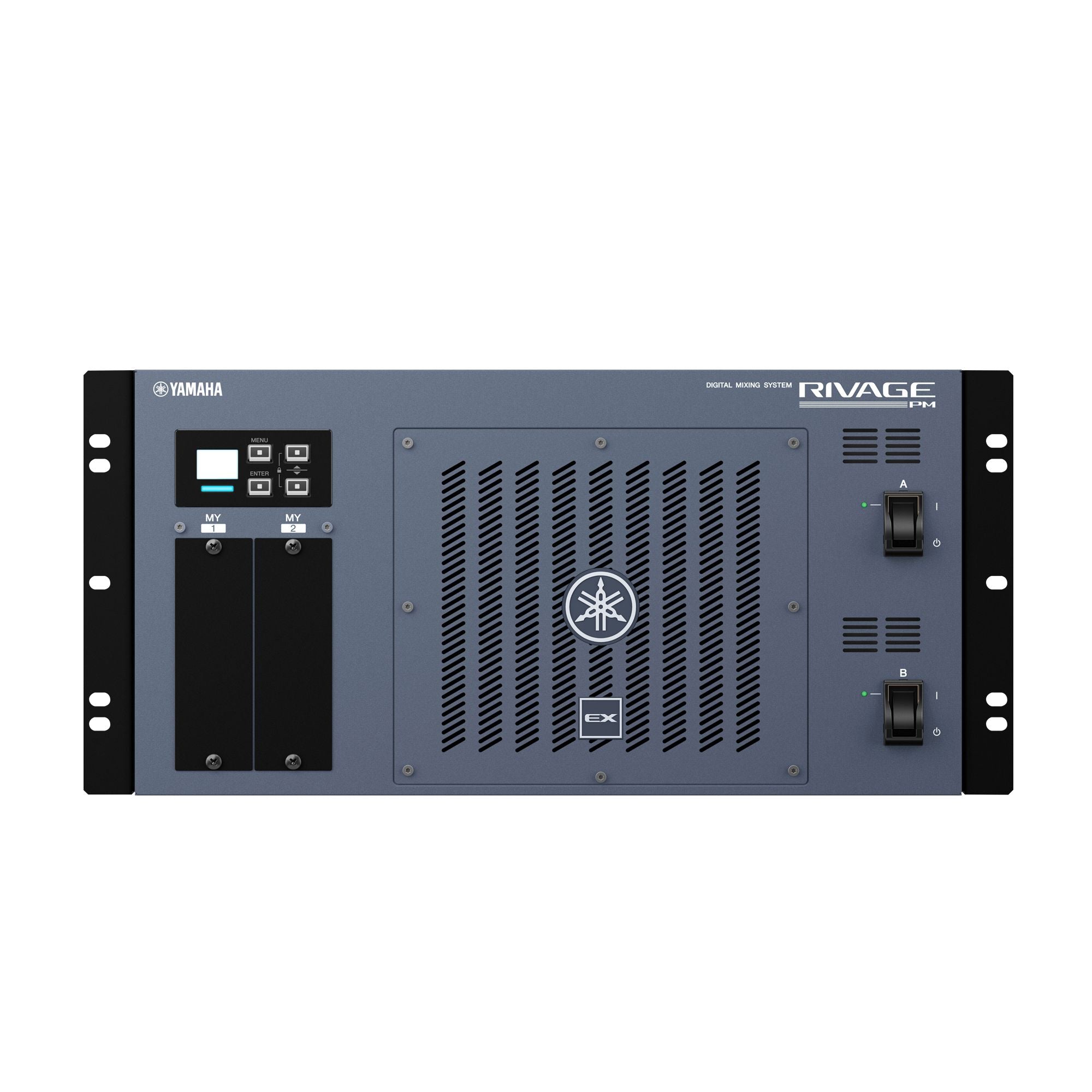

Yamaha RIVAGE PM DSP-RX-EX High-Capacity DSP Engine - 288 Inputs, 72 Mix Buses

YAM-DSPRXEX The DSP-RX-EX is the ultra-high-capacity DSP engine for the RIVAGE PM system: supports up to 288 inputs, 72 mix buses, 36 matrix channels, four HY card slots, and two Mini-YGDAI slots. Dual redundant power supply built-in.

Maximum Input Channels: 288 inputs.

Mix Buses: 72 mix buses.

Matrix Channels: 36 matrix channels.

Stereo Buses: 2 stereo channels.

HY Card Slots: 4 HY slots for audio network expansion (supports up to 256 ins/outs each).

Mini-YGDAI/MY Card Slots: 2 slots for additional interface formats.

Power Consumption: ~200 W.

Dimensions (WxHxD): Approx. 1,145 × 385 × 650 mm (45.1" × 15.2" × 25.6").

Net Weight: Approx. 38 kg (83.8 lbs).
